How to Insulate a Concrete Floor using EcoTec FloorFoam. FloorFoam is a 4mm dense foam & foil membrane to be used under carpets & laminate.
EcoTec FloorFoam has a high reflective foil either side of the foam membrane. These foils will help retain the heat, and stop the cold rising into your home.
If you are going through building control on this project, we would recommend our LABC certified SuperQuilt Insulation. SuperQuilt however requires a min 50mm Batten which will raise the floor. To view SuperQuilt’s guide for concrete floors, Click Here!
FloorFoam is extremely simplistic to install. FloorFoam will help to retain heat, add a thermal barrier and also significantly reduce draught.
Require a tutorial for insulating FloorFoam on a Timber Floor as opposed to a Concrete floor? Click Here!
Multifoil-Insulation are the leading UK & European distributor of Multifoil Insulation products. We offer free next working day delivery to the UK Mainland (Order before 2pm)
Start by rolling out FloorFoam Insulation either vertically or horizontally on the concrete floor. EcoTec FloorFoam can then easily be cut by using Multifoil Scissors or a Cutting Knife - Both available in our Fitting Kit.
FloorFoam is fixed onto concrete floors by using Thermaseal Double Sided Tape, or Non-Solvent Glue. Ensure FloorFoam Insulation is fully taped and sealed on butt joints on the floor. Also tape FloorFoam around the perimeter.(Thermaseal Foil Tape is provided free of charge in kit). Taping and sealing ensures no draught or moisture can rise up through the floor.

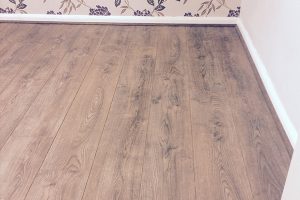

Once your concrete floor has been covered with FloorFoam, next you can install your desired flooring. Wood & laminate flooring can be installed directly on top of FloorFoam. We recommend to use a carpet underlay prior to a carpet being installed. If a vinyl or lino is being used, we would advise the use of a plywood over the top of the FloorFoam.
Disclaimer – Multifoil-Insulation cannot be held responsible for any losses financially or physically from advice provided in this How-To-Guide.
