TyvaQuilt 0.18 ReRoof System

Name: TyvaQuilt 0.18 ReRoof System
Brand: MultiFoils Insulation
SKU: SKU-197-15656
Price: 298.77 GBP
Availability: InStock

Total: £298.77 Ex. VAT Total: £358.52 Inc. VAT

Kit-Size

Non-Itch-Width

Quantity:

Featured How-To Video

TyvaQuilt 0.18 ReRoof System

Total: £298.77 Ex. VAT Total: £358.52 Inc. VAT

Kit-Size

Non-Itch-Width

Quantity:

Featured How-To Video

Key Features

LABC, NHBC & BDA Approved Products
Meets Building Regulations in 100mm above Rafters
Three-layer roof insulation system
A layer of SuperQuilt under the rafters
A layer of Non-Itch Loft Insulation between the rafters
A layer of BreatherQuilt over the rafters
Achieve a 0.18 U-value
Suitable for New Builds and Re-Roofs
Significantly reduces labour time
No Protective clothing or sawing required
UK Manufactured Products
Free next working day delivery on orders placed before 2pm

Description

Achieve UK Building Regulations

Multifoil Insulation's TyvaQuilt 0.18 ReRoof System.

Achieve building regulations in less time, less cost and less labour time than any other solution on the market.

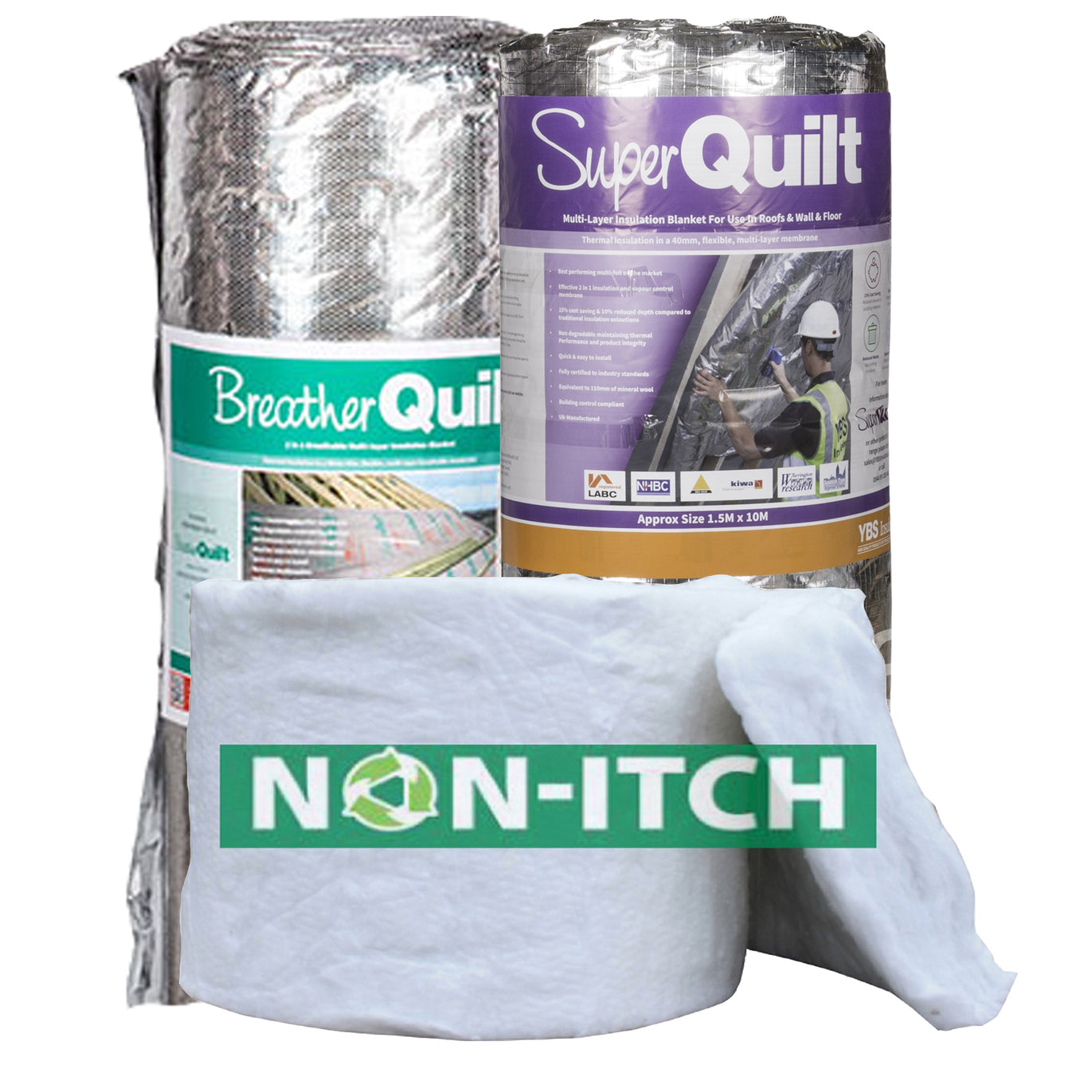

TyvaQuilt system consists of a 3 layered system;

YBS Insulation's SuperQuilt Under Rafter
EcoLoft Non-Itch Between Rafters
YBS Insulation's BreatherQuilt Over Rafter
This system will achieve a U-value of 0.18 or better

All products used are UK Manufactured. Furthermore, all insulation layers are non-degradable and will last as long as the application.

Labour time will be significantly reduce, owed to the fact you do not need to cut Rigid PIR Boards you can keep the products continuous. In addition, TyvaQuilt is also proven to save cost & wastage whilst achieving the highest performance possible.

TyvaQuilt Solution is available in 9.12m², going up to a 72.96m² on our website. Alternatively, if a kit larger than 72m²? Click our Contact Us page!

You will also receive the following items in our TyvaQuilt Package;

Adequate Thermaseal Foil Joining Tape, for taping SuperQuilt
Adequate Thermaseal Weatherproof Tape for BreatherQuilt
Free Heavy Duty Staple Gun & 5,000 Staples (18.24m² or greater only)

Watch our How-to-Video to see how easy it is to install TyvaQuilt on your Roof.

Require a U value document for building control? Visit our Free and Instant Online U-value calculator! Click Here to use.

Prefer to order via phone? Click our Call Me Back button! Our dedicate sales team will call you back within the hour.

Delivery Schedule

Order the TyvaQuilt 0.18 System online before 2pm and receive Free Next Working Day delivery on orders over £100+ VAT. Weekend orders are delivered on Tuesdays.

Free Gift

Spend over £500 + VAT and Choose a FREE GIFT at the checkout.

Gifts include: True Aluminium Foil Joining Tape, Multifoil Screws, Multifoil Scissors, Heavy Duty Staple Gun Kit with 5,000 Staples, Thermaseal Double Sided Tape.

How to Videos

How to Fit BreatherQuilt over Rafter

How To Guides

How To Install TyvaQuilt Insulation To Achieve 0.18 U-Value

How To Achieve a 0.18 U-Value with our TyvaQuilt System

Install SuperQuilt Under Rafter

Install the SuperQuilt underneath the rafters horizontally, when installing staple every 300mm to ensure the SuperQuilt holds securely in place. When you have completed this - tape and seal around all the edges and joints using the Thermaseal Foil Joining Tape. This tape is included with the Tyva Quilt Kit.
Batten and Board

Install battens that have a minimum depth of 25mm. Secure these by going through the SuperQuilt and into the rafters behind. The gaps between each batten installed should be between 400mm and 600mm. Follow by installing your plasterboard / preferred finish.
Install EcoLoft Non Itch

Now between the rafters, you can install the EcoLoft Non Itch. We have two different sizes you can choose from depending on your centres (likely to be 400mm or 600mm). One size is 380 and the other 570 - so choose the one most appropriate for your roof. This material is 100mm thick and you simply install this between each rafter. You need to ensure the non itch is pushed back and that you have an air space between this and your breatherquilt.
Install BreatherQuilt

Now you have installed your non itch, proceed at the bottom of your rafters by installing BreatherQuilt horizontally. Staple every 300mm to ensure secure. Ensure that BreatherQuilt is draped into the rafters, it does not need to be pulled taught. Each layer of BreatherQuilt should overlap by 100mm, the tape is fixed to the BreatherQuilt to seal the two layers together. Vertically the quilt can be butt joined and taped with the weatherproof tape.
Install Tile Battens

When you have installed the BreatherQuilt, ensure you have a 10mm gap between the BreatherQuilt and Tile Batten (in centre of each rafter). At the eaves, BreatherQuilt should extend onto a suitable eaves carrier. Finish with tile or slate finish on tile battens.

Product Data Sheet

BreatherQuilt Data Sheet

YBS BreatherQuilt Installation Guide

SuperQuilt For Roofs
