Watch our How-To Video to see how easy it is to install EcoQuilt Expert in various applications.

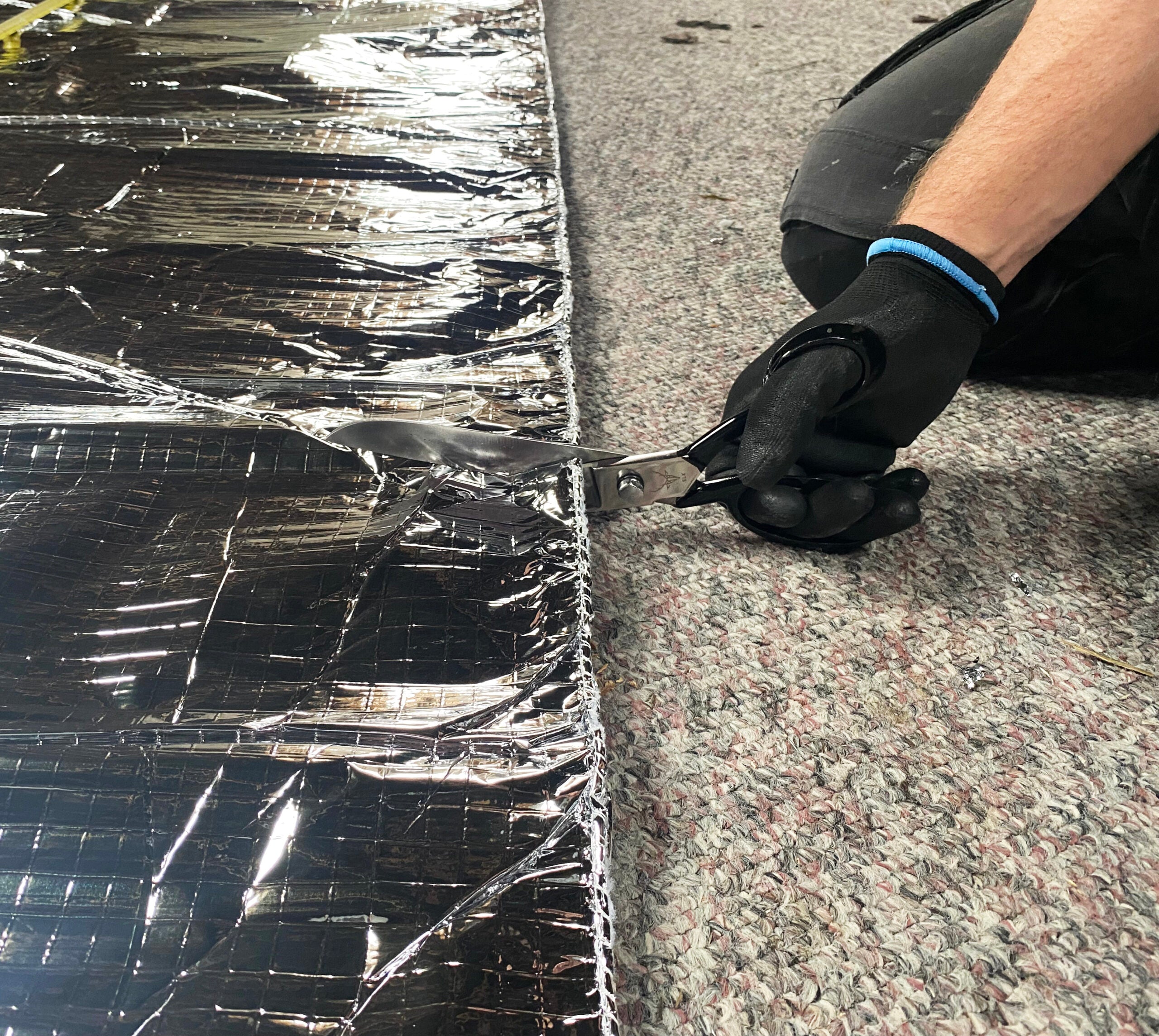

Measure the area of either the wall / roof section depending on where you would like to insulate first and cut. You can cut using either our Cutting Knife or Multifoil Scissors. Both of which come part of the Mulfifoil Fitting Kit that we supply.

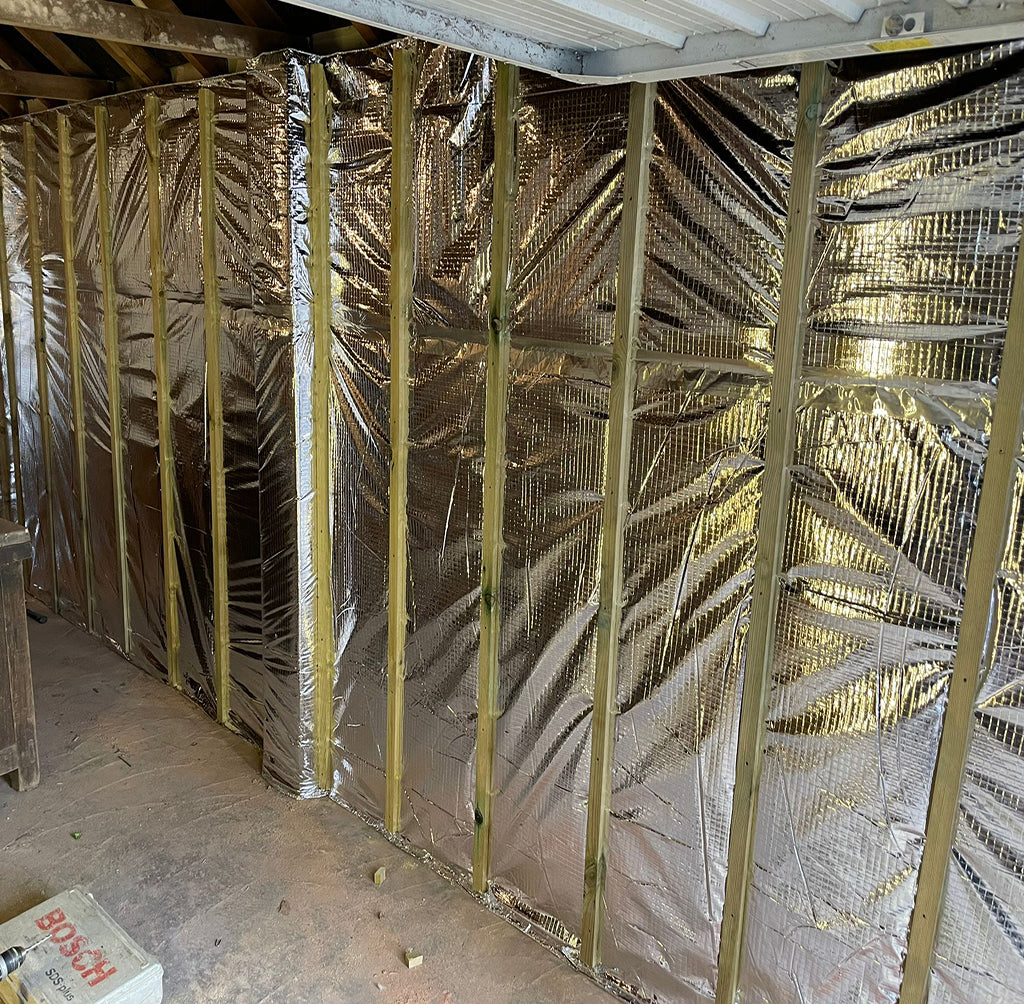

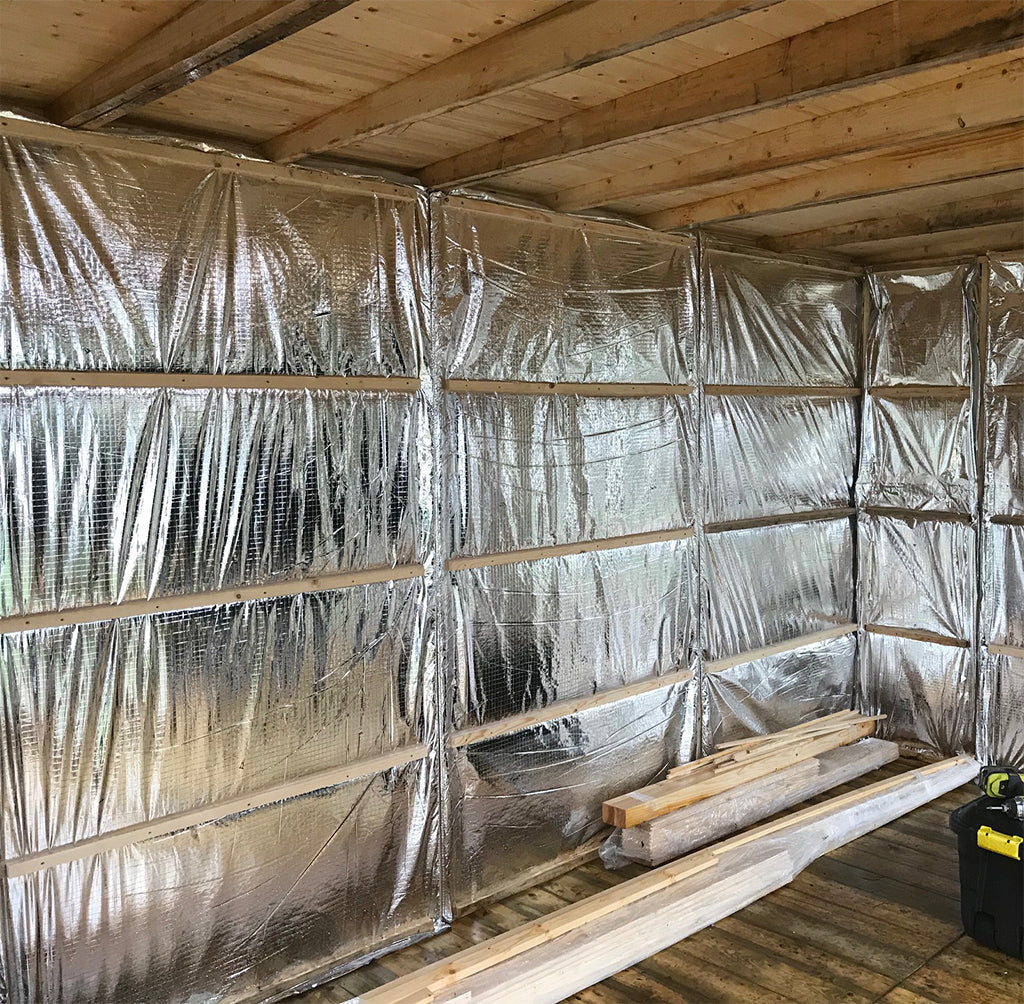

Proceed by stapling the Multifoil Insulation directly to the timber (whether that be the Rafters, Studs or Battens). This is the best way to enable the EcoQuilt to perform, as it provides a air cavity behind the insulation. When stapling, leave 300mm intervals.

Install the Second Strip of EcoQuilt. IMPORTANT: overlap the EcoQuilt by 50mm, on both the horizontal and vertical joints.

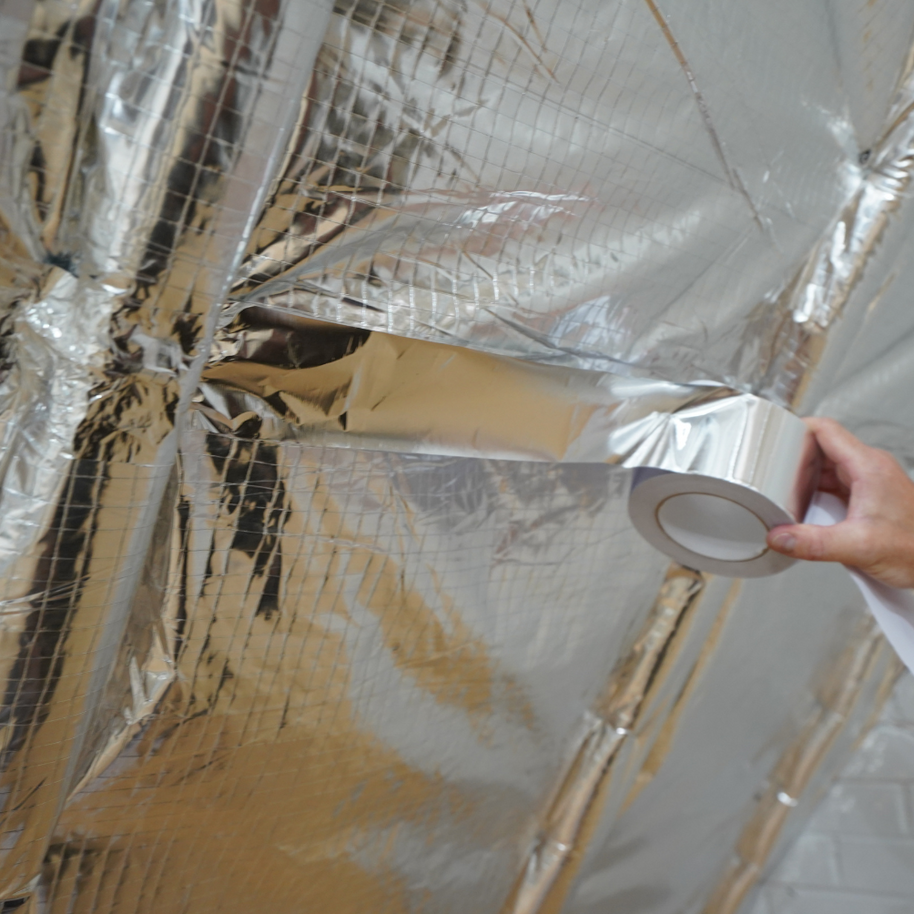

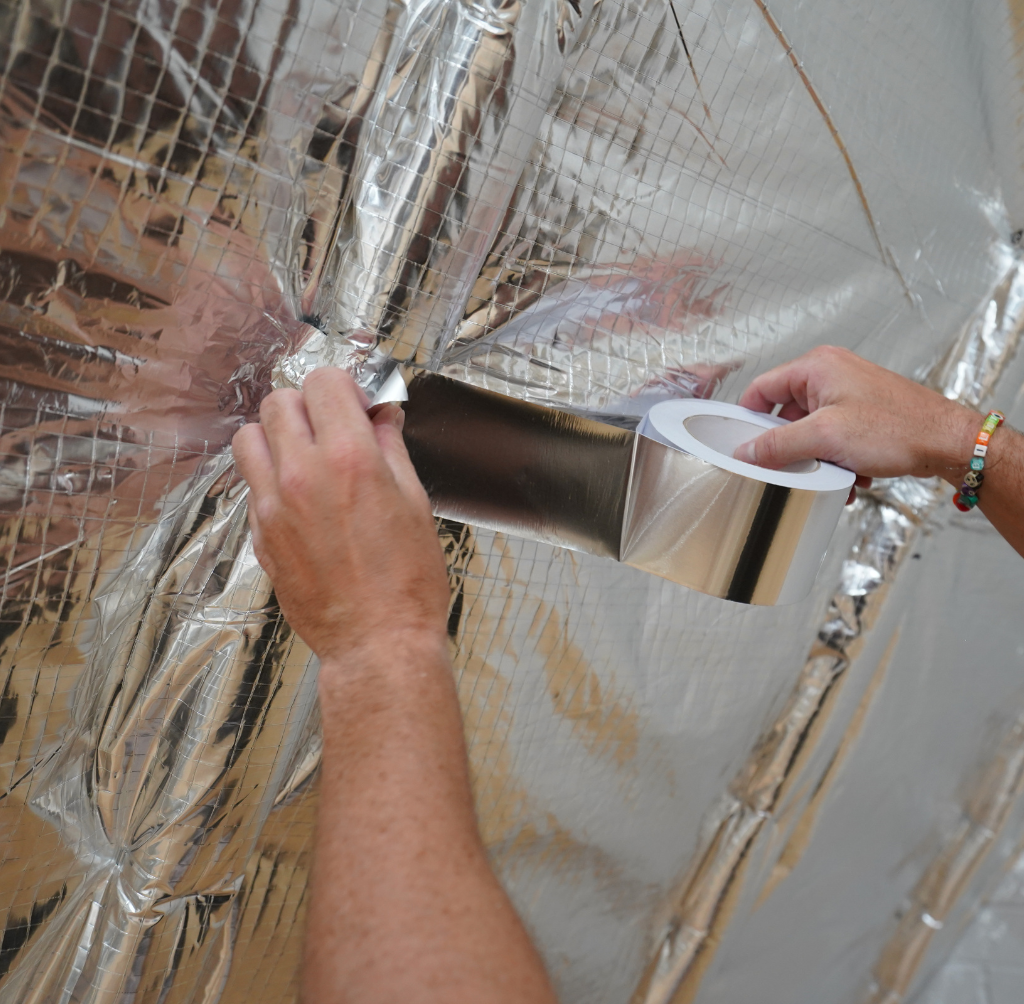

Use the ThermaSeal Foil Joining Tape - to tape and seal all the joints and edges. You will need to ensure that the EcoQuilt is fully taped and sealed around the perimeter, as this creates the vapour

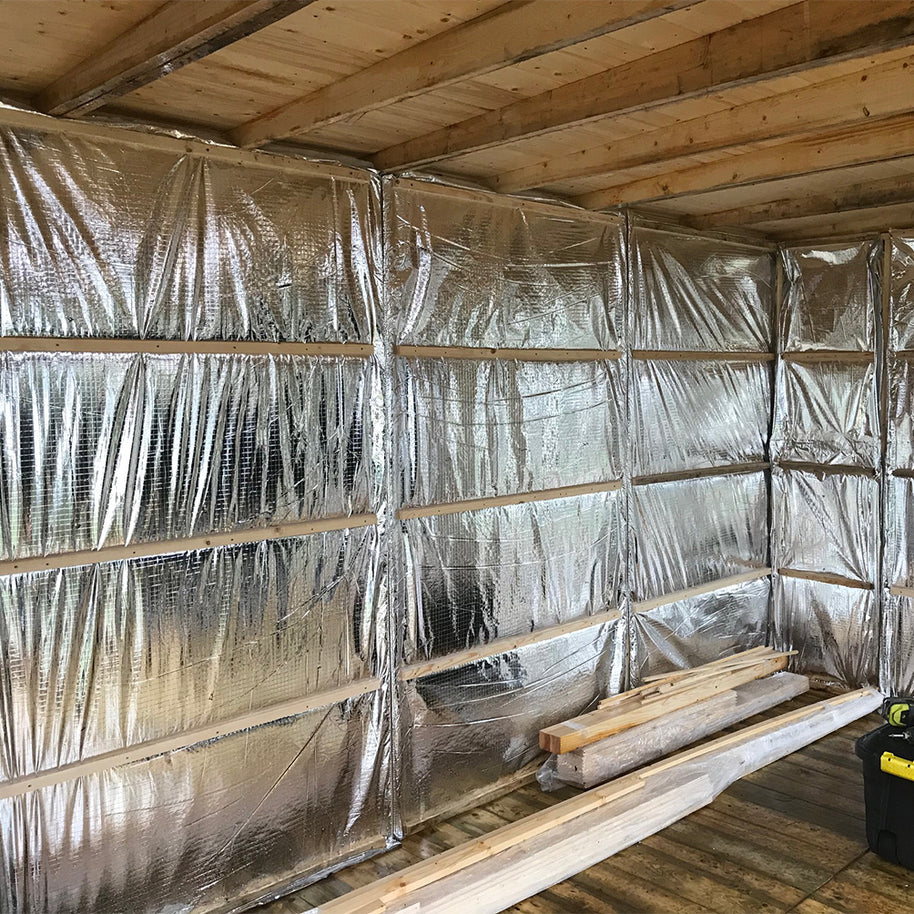

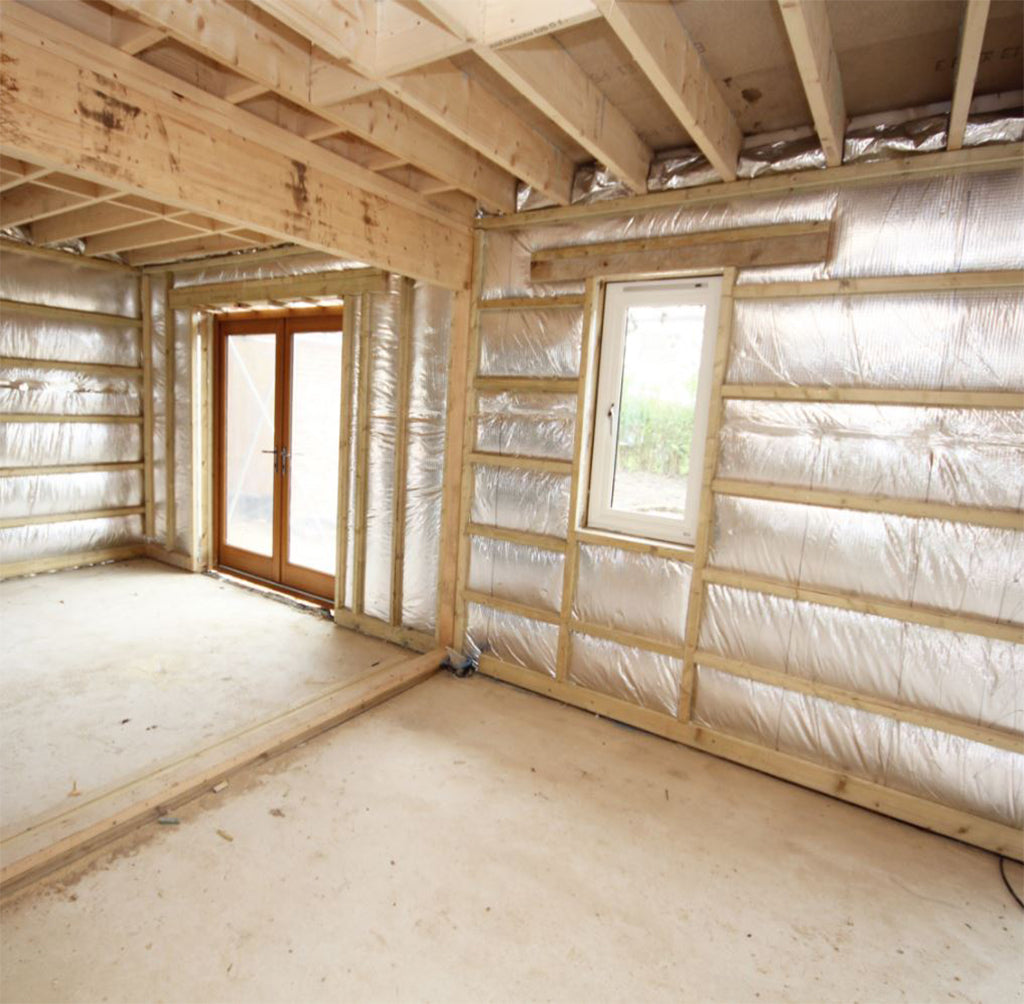

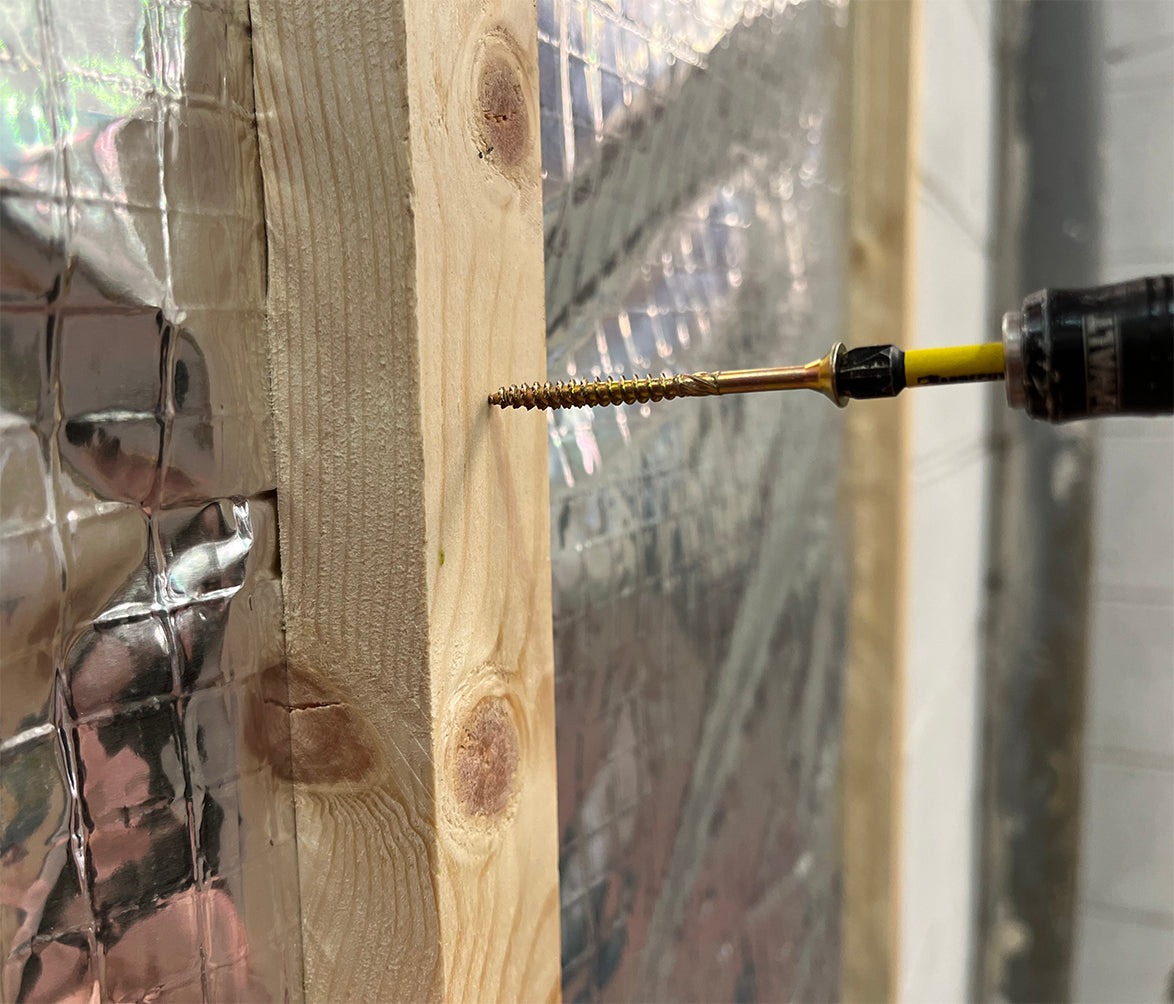

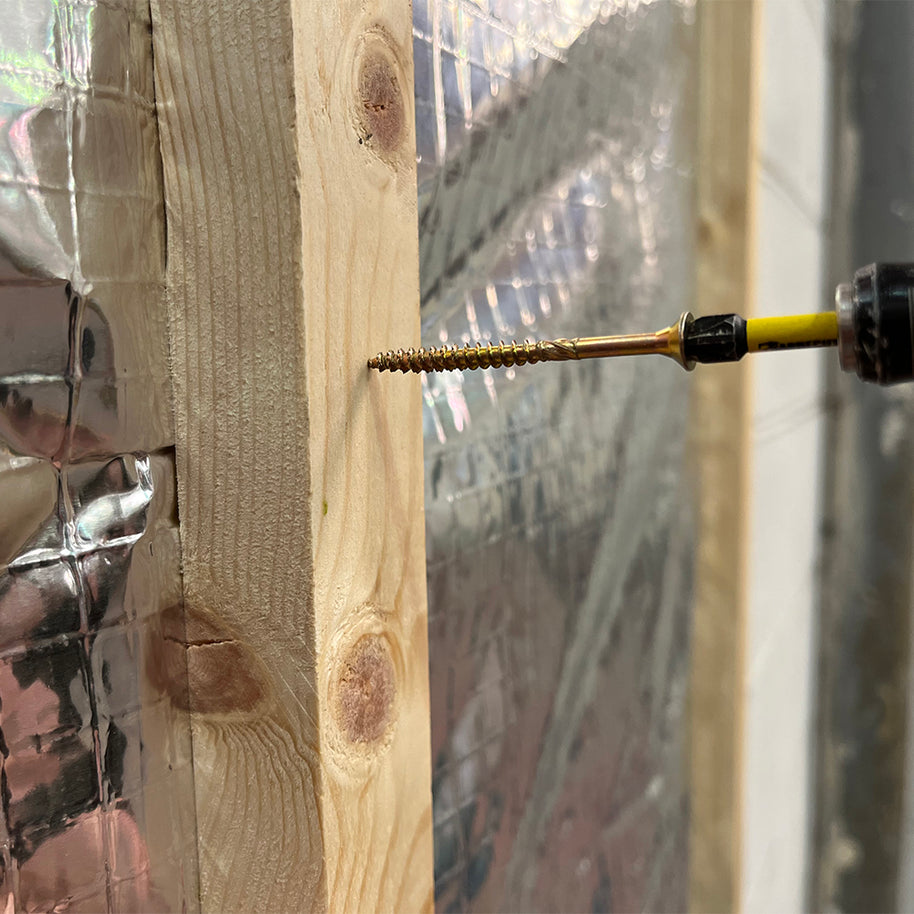

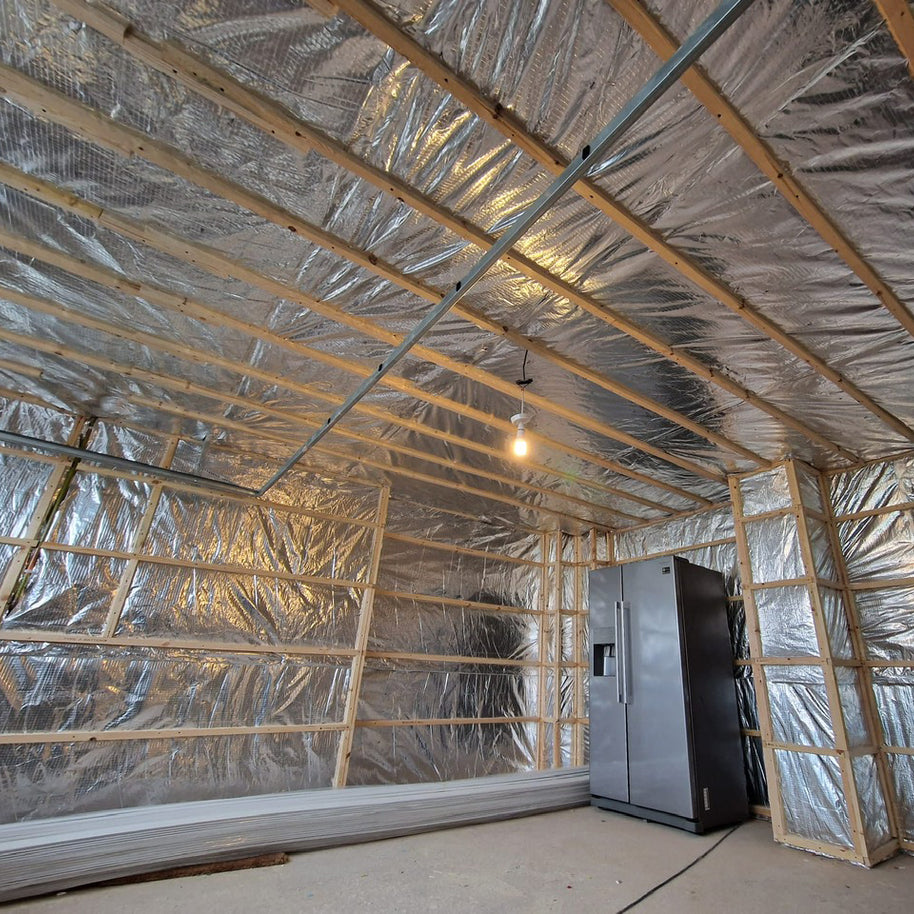

Once the EcoQuilt Layer has been installed - install a secondary set of battens over the top of the insulation. We advise using between 400mm and 600mm centre battens. You can then proceed with your internal finish, over the battens.

Start by removing the existing loft insulation. Ensure a mask and protective clothing is used to avoid irritation to the skin.

Measure out the length of material required, then roll our EcoQuilt Expert over the joists. EcoQuilt can be simply be cut using scissors or a cutting knife - Both available in our Multifoil Fitting Kit. Ensure when the second run of EcoQuilt is installed the layers are overlapped by 50mm.

Staple EcoQuilt on both the top of the joists, and also on the sides when recessing. We recommend the use of a 25mm batten to use as a template, this will ensure accurate and correct air gaps throughout the floor area. The benefit of recessing is to create a cavity without the use of a batten. When a cavity is formed, optimum performance is gained from the insulation as this will reflect properly.

Ensure all overlaps are fully taped and sealed using Thermaseal Foil Tape (Provided in the kit) Ensure the brick walls are dust and debris free. Fully tape and seal around the perimeter with Thermaseal Tape. This will ensure EcoQuilt works as an Insulating Vapour Control Layer. It will avoid any air leakages, and keep the heat on the internal.

You then have the option to install a 2nd layer of EcoQuilt taut over the joists, Using an additional layer will maximise the heat retention. For further installation benefits, use a 25mm batten over the joists.

Once 1 Layer of EcoQuilt is installed and taped using ThermaSeal Foil Tape, you are now ready for the installation of loft boards. This can be screwed directly into the joists through the insulation.

Measure the amount of material required for your first strip and cut. It is most common for customers to insulate horizontally, but the choice is yours.

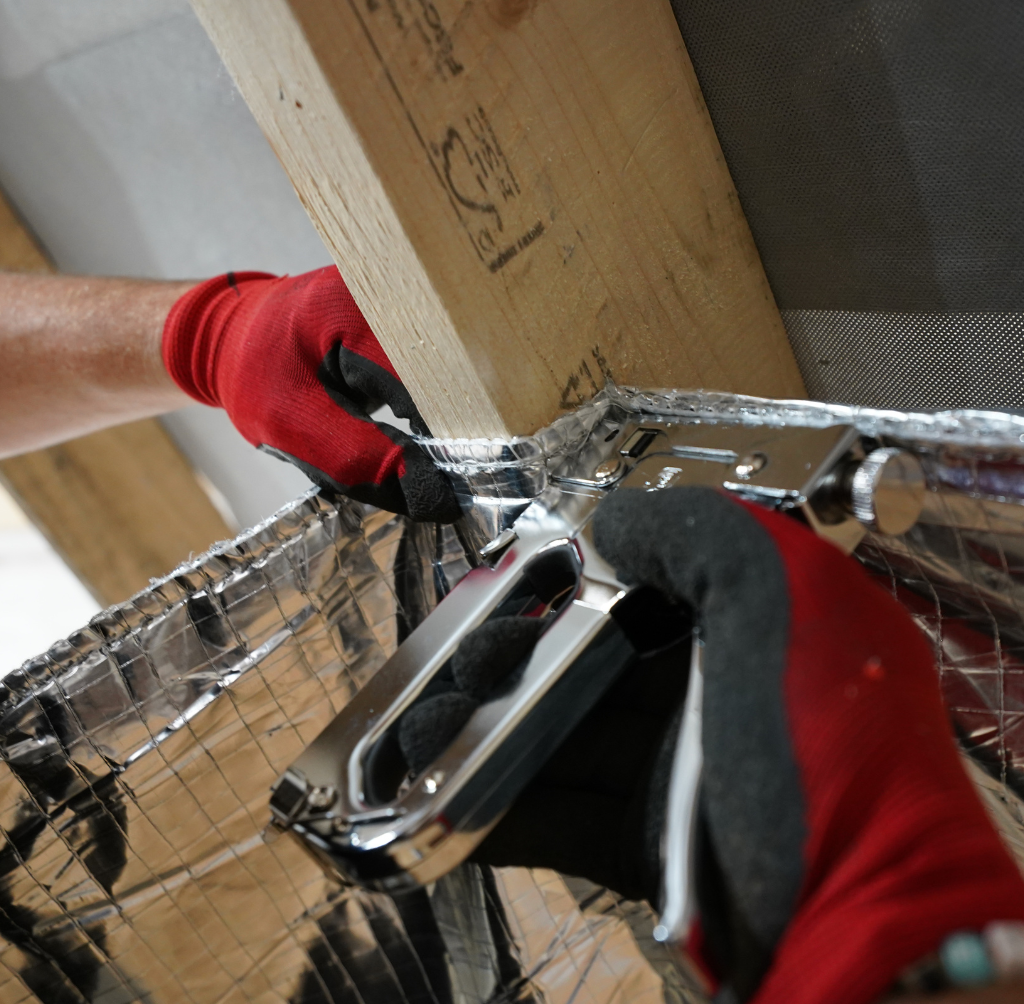

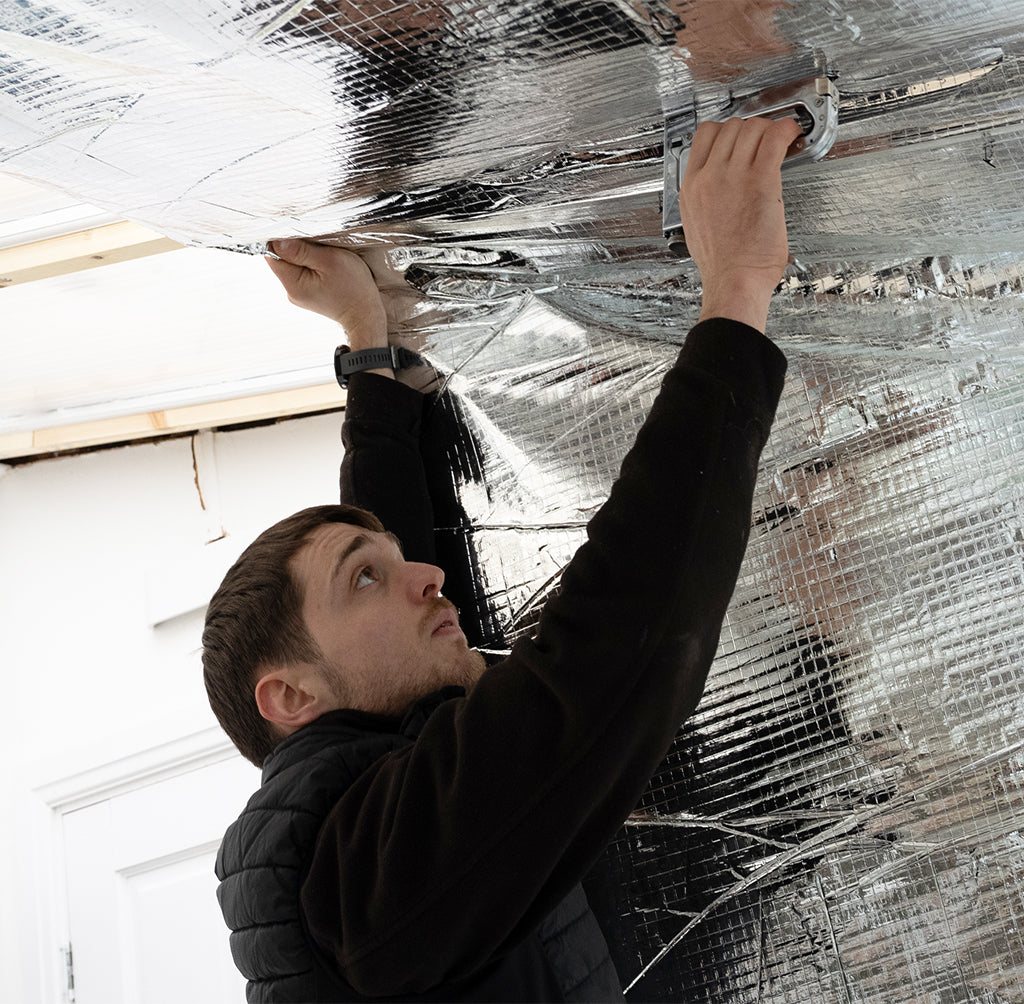

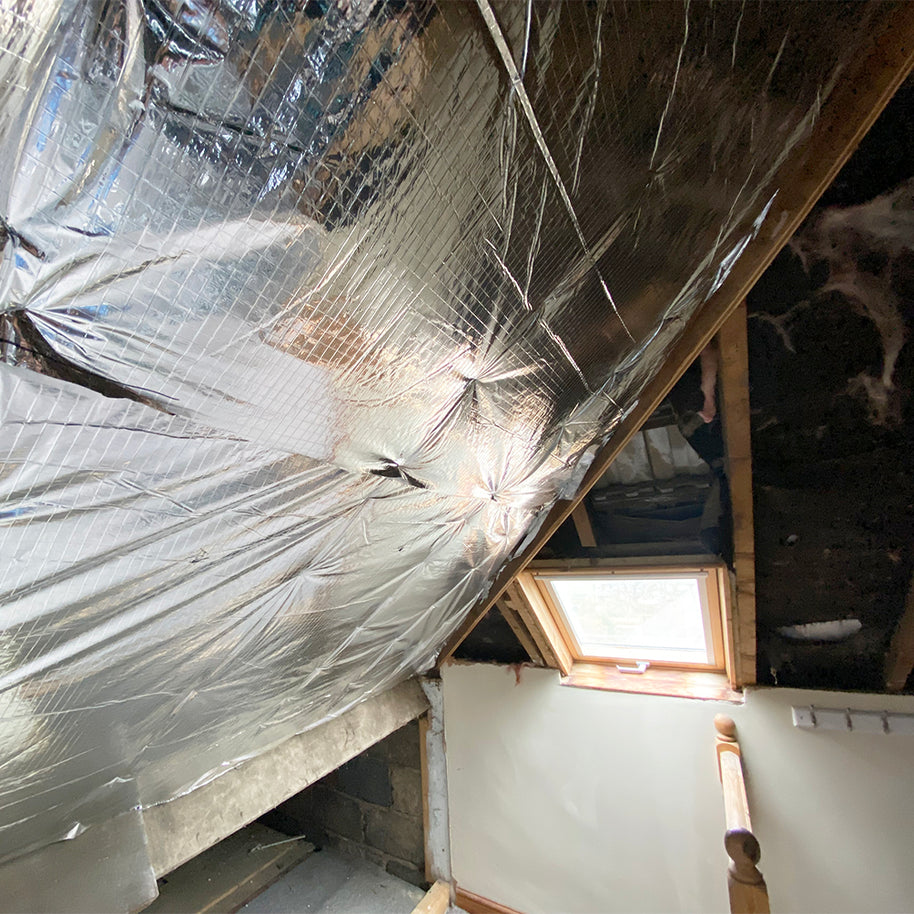

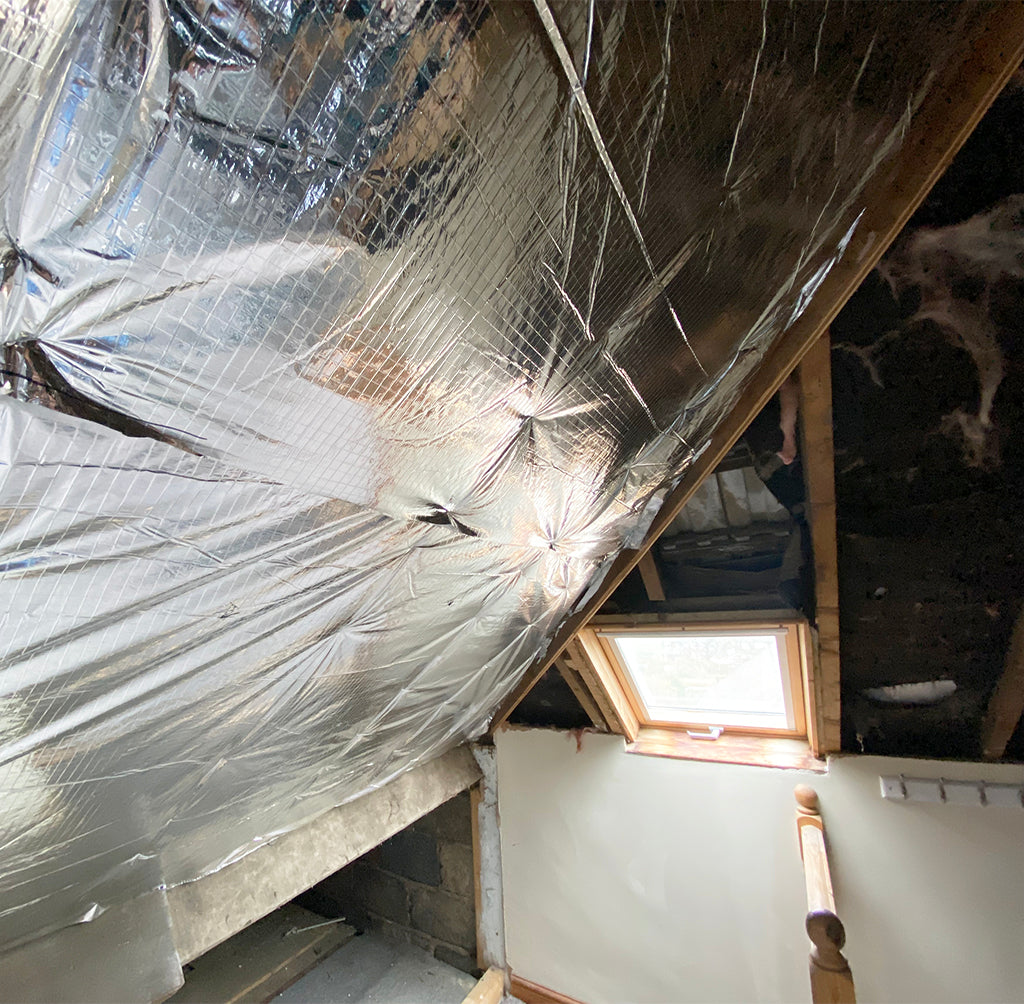

Staple the Multifoil to the underside of the Roof Rafters. We advise stapling every 300mm to ensure that the material is held securely in place. Pull the material nice and straight where possible, to keep it neat and also to make the cutting process easier for you too.

When installing your second layer, overlap the material onto the former layer by 50mm. Continue insulating until you have full coverage, following the above instructions.

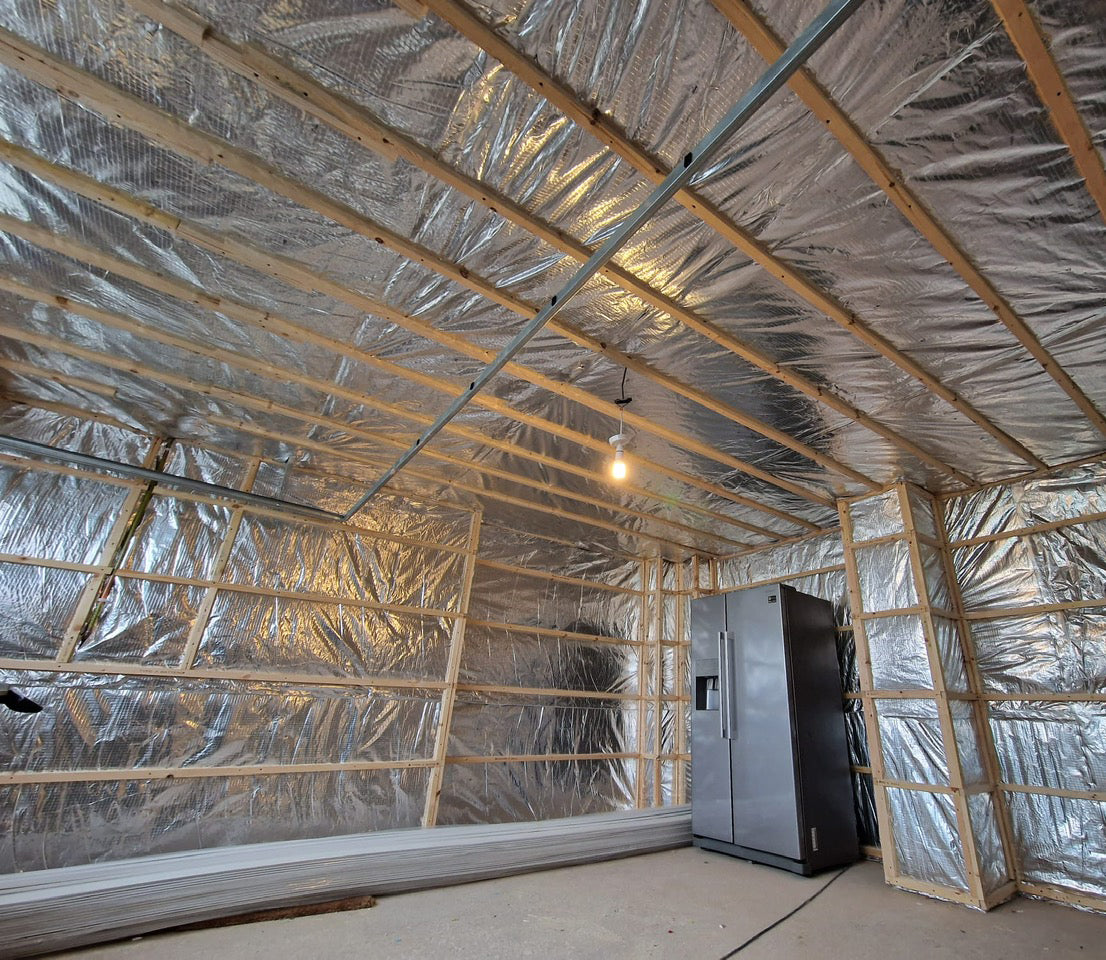

You may wish to leave the insulation exposed - which is fine. However, it is quite common for customers to nail/screw battens into place before boarding - if they are wanting to create a usable room. This is not required but is a popular option.

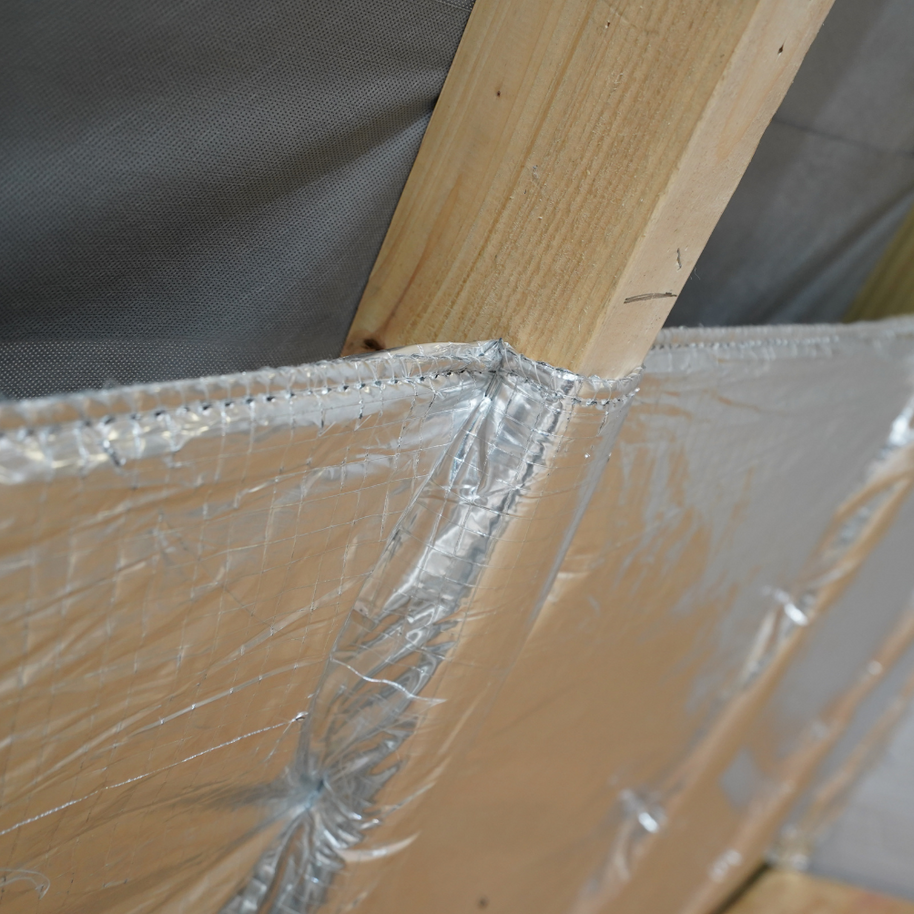

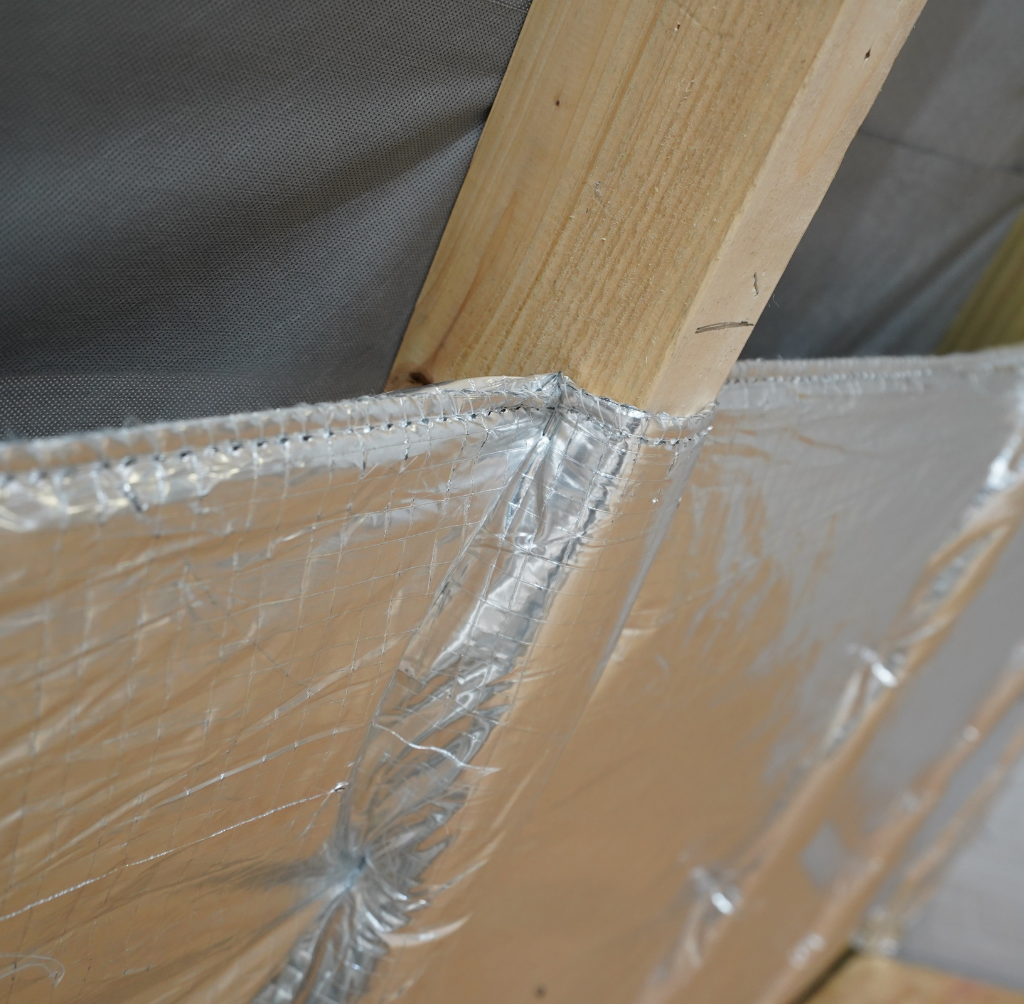

You can double the performance by installing two layers. To save on space, you recess the first layer to the side of the roof rafter. This way, you still have an air cavity behind the product, but you also have an air cavity between the first and the second layer too.

Continue installing your first layer until you have full coverage.

If the Conservatory has a glass roof, we recommend the use of our ThermaFrost Window Tint. This material will create a white opaque finish which will add privacy and also reduce sun glare by around 30% To view full installation details of this product, please visit the data sheet on the product page. Please note this cannot be used on Polycarbonate Conservatory Roofs.

Install 25mm wooden battens onto the existing uPVC and Aluminium framework. We recommend the use of our FastFix 50mm Self Tapping Screws. We would recommend to check the depth of your roof rafters as the screws are only designed to go part way through the aluminium frame.

Staple either EcoQuilt Expert or YBS SuperQuilt to the underside of the wooden battens. This will have then created an air cavity between the multifoil and Polycarbonate/Glass Roof. We recommend stapling at 300mm intervals and using our Heavy Duty Staple Gun and 14mm Staples.

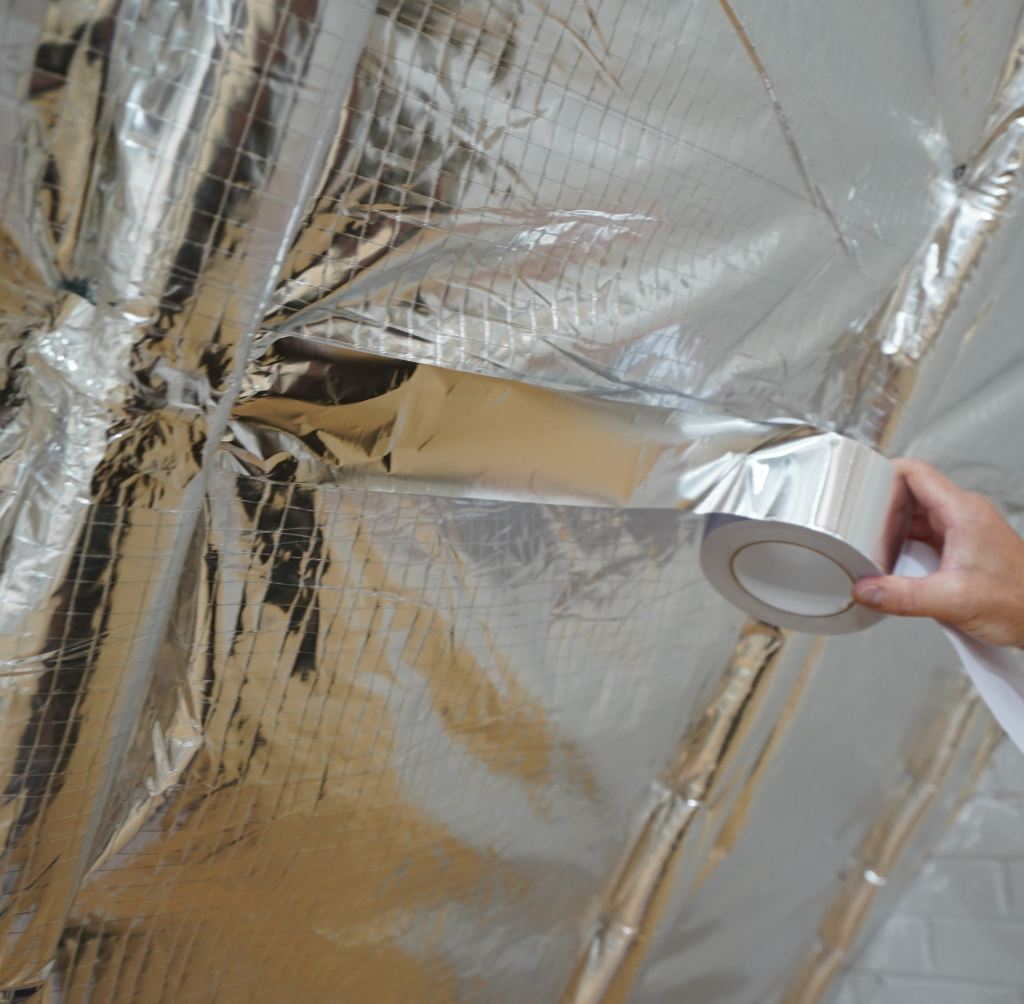

Tape and seal all overlaps, cuttings and the perimeter with our ThermaSeal Foil Joining Tape (75mm x 50m roll). We recommend going overkill with the Foil Tape as this will allow the insulation to act as a high performing vapour control layer.

Fix 25mm x 38mm battens underneath SuperQuilt. This is commny installed horizontally. Deeper battens can be used if preferred or if your U-Value Calculation recommends to. Battens also must be fixed around the perimeter of windows and doors.

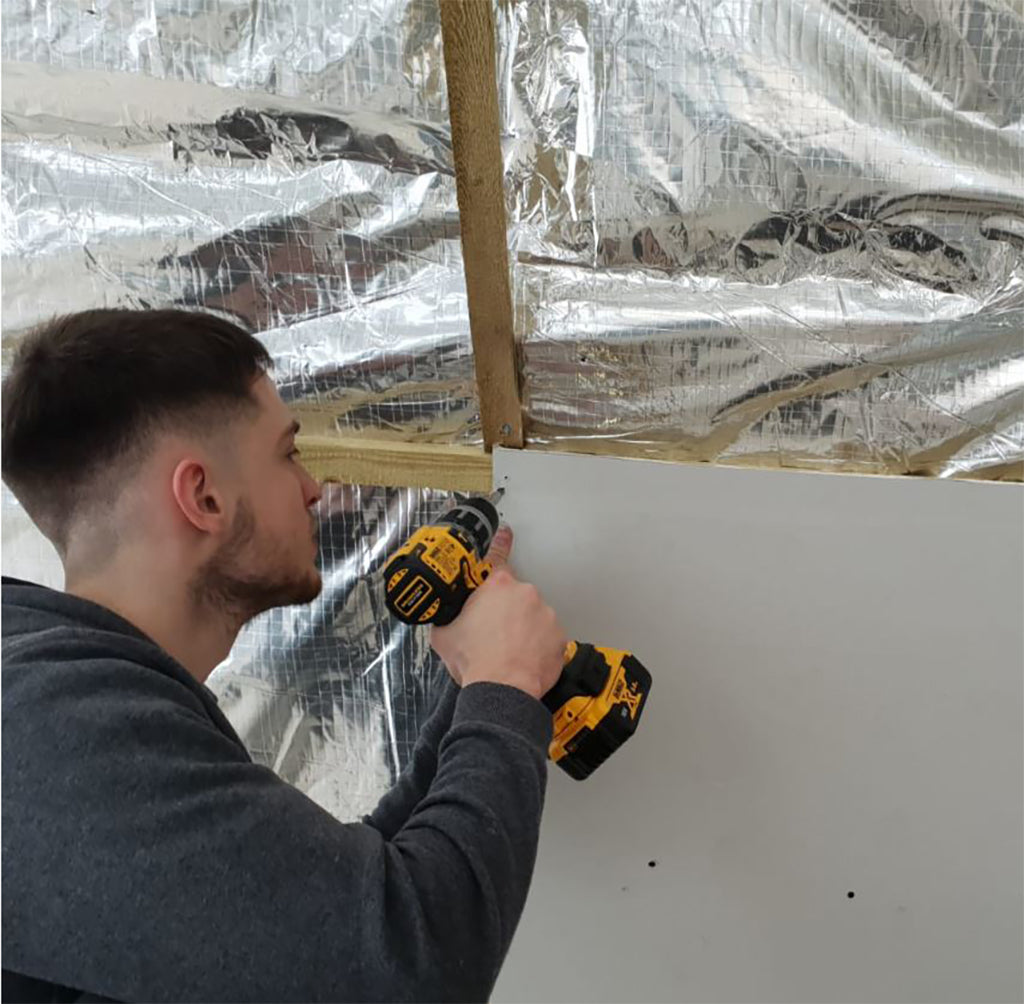

To complete the installation you can now fit either a plasterboard or more commonly our ConservaClad Roof Kit. This can be screwed directly to the underside of the counter battens. If installing Plasterboard we recommend not to use a foil backed board and also to use a 9mm rather than 12.5mm board, as this will help keep the weight to a minimum.
