Key Features

19-layer multifoil insulation
Suitable for New Builds and Renovations
Highly Reflective True Aluminium Outer Layers
Flexible, Thin, and Easy to Install
Can meet Building Regulations without the use of PIR
High Performing Vapour Control Layer.
Save up to 10% in Space and 30% in Cost
UK Manufactured
Available in three different sizes
Class 1 Surface spread of flame
Free next working day delivery on orders over £100 + VAT

Featured Video

Description

The Ultimate Floor Insulation

Upgrade your floors with YBS SuperQuilt Floor Insulation, the highest EN certified multifoil insulation available. Perfectly suited for floating floors, suspended timber floors, and crawl spaces, it delivers exceptional thermal performance in a slim, easy-to-install format.

Equivalent to approximately 100mm of PIR insulation in a floor detail, YBS SuperQuilt helps reduce heat loss, improve energy efficiency, and create a warmer, more comfortable home. Its reflective, multilayer construction makes it ideal for both new builds and retrofit projects.

What is YBS SuperQuilt Insulation?

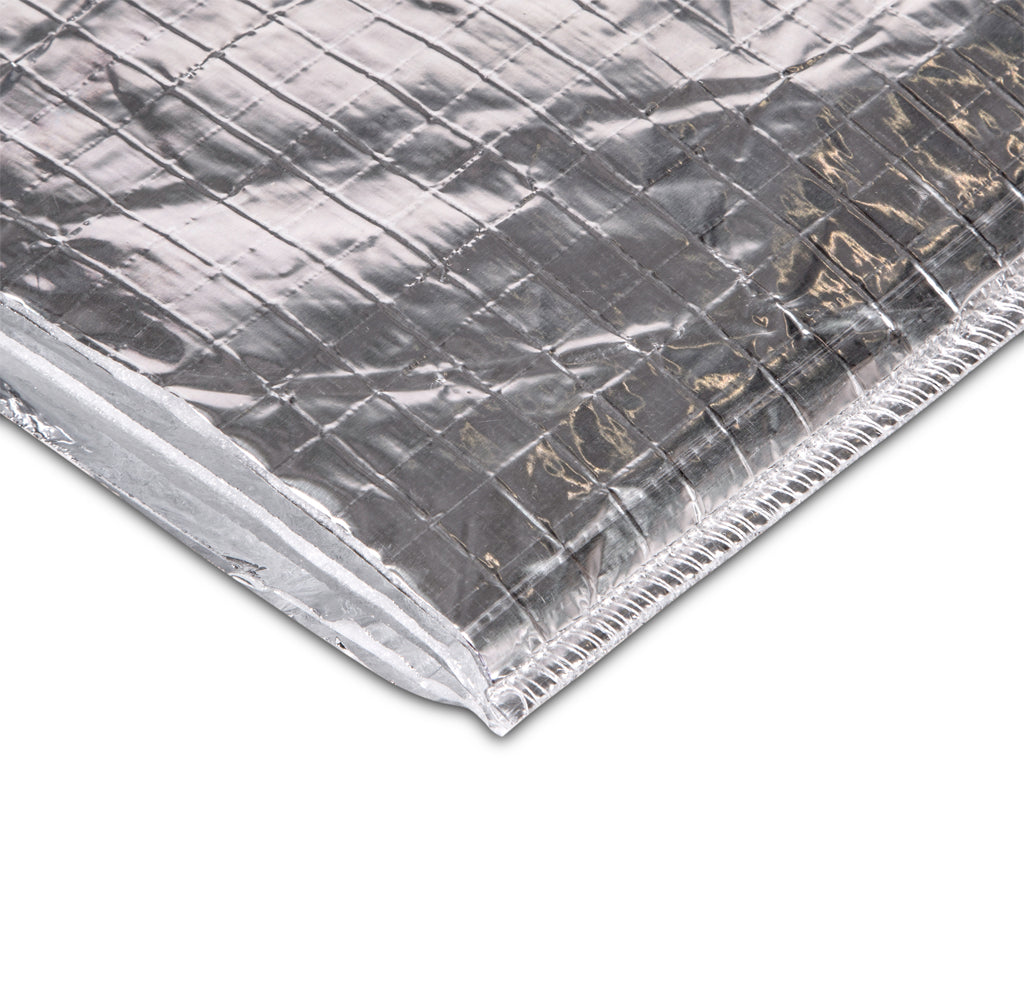

YBS SuperQuilt is manufactured in the UK using a combination of 19 layers of True Aluminium Foil, Wadding, and High-Density Foam. The product is an excellent space saver, because SuperQuilt is 40mm at a relaxed thickness, and compresses down to as little as 10mm.

Please see our YBS SuperQuilt Fitting And Data Sheet to see how to insulate your Floor in less time and space than any other method.

Delivery Schedule

Order SuperQuilt Insulation online before 2pm and receive Free Next Working Day delivery on orders over £100+ VAT. Weekend orders are delivered on Tuesdays.

Free Gift

Spend over £500 + VAT and Choose a Free Gift at the checkout.

Gifts include: ThermaSeal Foil Joining Tape, Multifoil Screws, Multifoil Scissors, Heavy Duty Staple Gun Kit with 5,000 Staples, Thermaseal Double Sided Tape.

How-To Videos

How-To Install SuperQuilt Insulation on Timber Floors

How-To Guides

How to Insulate Above a Concrete Floor Using SuperQuilt

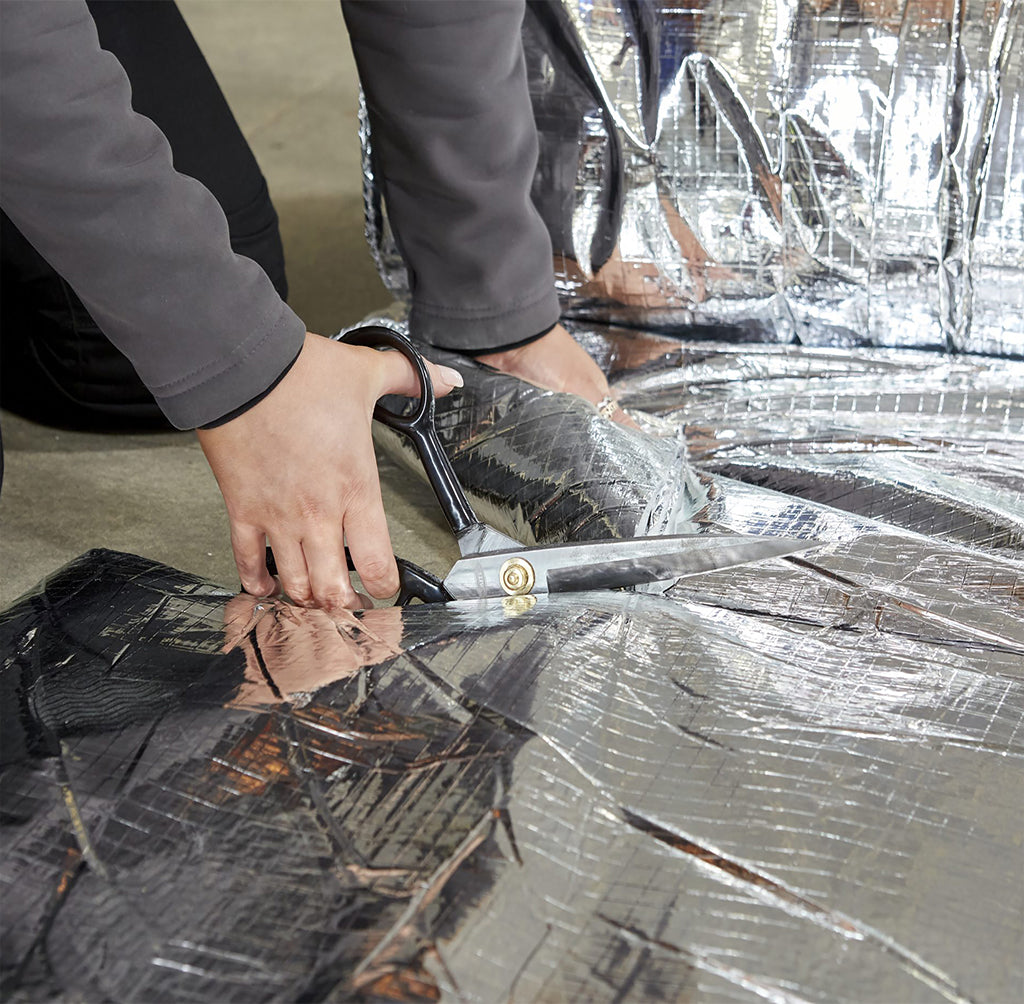

1. Installing First Run of SuperQuilt

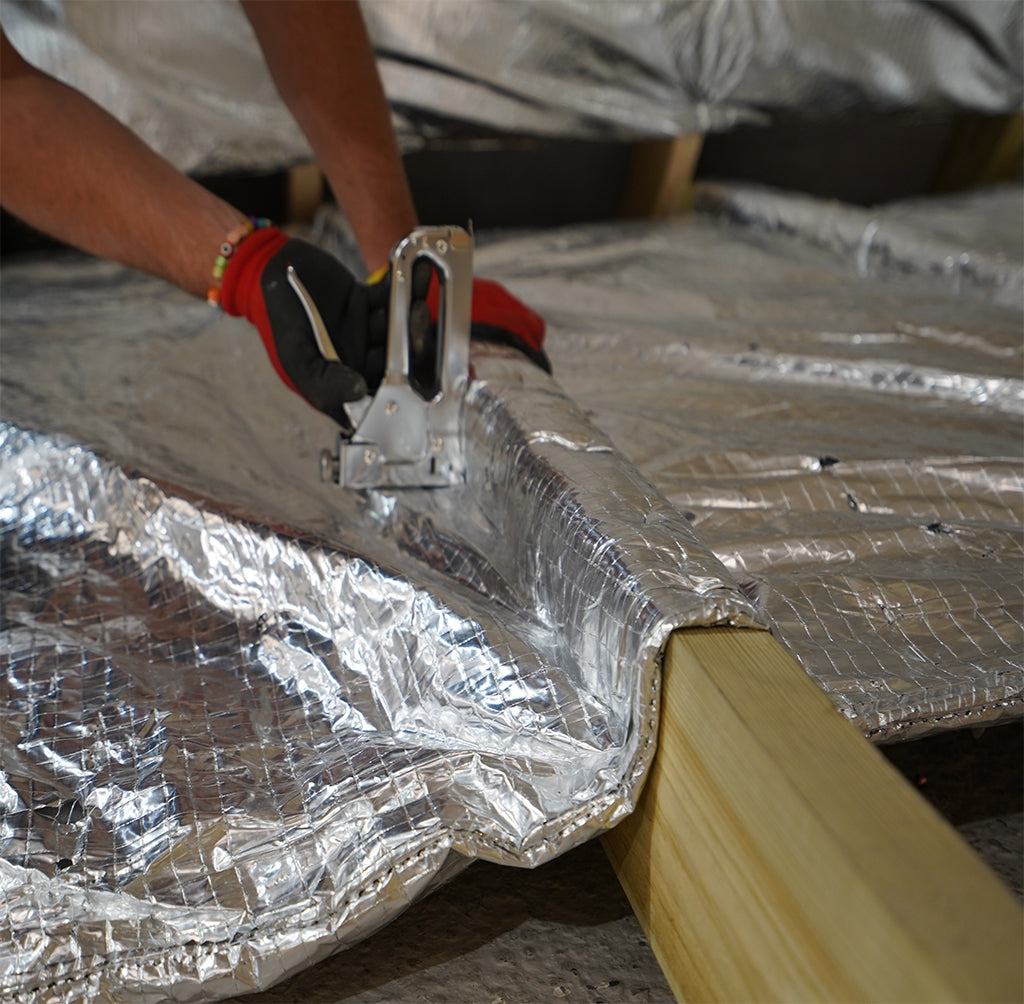

Firstly roll out the SuperQuilt to the desired legnth and attach the SuperQuilt to wooden purlins or rafters using staples or nails at 200mm intervals, we recommend to lip the SuperQuilt round the top of the Purlin and staple onto the back of the purlin as shown in our image below. This will allow the purlin to take the weight of the SuperQuilt.

2. Joints and Taping

Ensure SuperQuilt is butt jointed with other layers on both the verticals and horizontals. (No overlaps). Fully tape and seal all butt joists of SuperQuilt with Thermaseal 75mm ThermaSeal Foil Joining Tape.

3. Installing Battens

Timber battens or joists are then laid over the top of SuperQuilt - at 400mm centres (evenly spaced). The minimum batten depth is 50mm, increasing the batten depth enhances the performance. SuperQuilt will compress to around 7mm when timber is installed above.

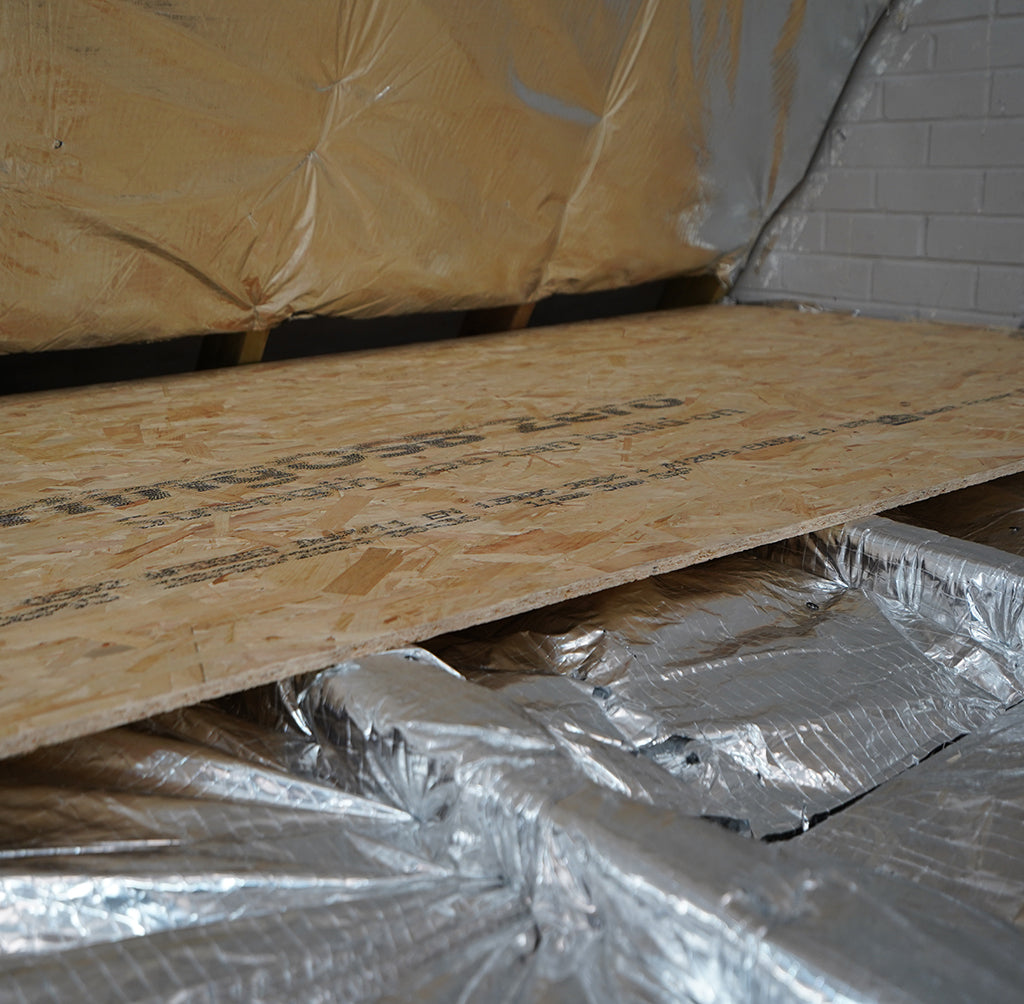

4. Finish with Flooring

Proceed with installing your timber boarding floor. The deck is then fixed at 200mm centres, with 37mm screws into the joists or battens below

Specification

Length	10m
Width	1.5m
Thickness	40mm
Coverage	15m²
Layers	19
Weight	12.5KG
Core R-value	1.52m²K/W
1.52m²K/W	2.50m²K/W
Wall R-value	3.00m²K/W
Floor R-value	up to 5.56m²K/W
Foil Emissivity	0.02
Water Vapour Resistance	1569MNs/g

Datasheet(s)

SuperQuilt For Floors

SuperQuilt for Walls

Question and Answer

What does SuperQuilt consist of?

SuperQuilt consists of 19 itch-free layers including True Aluminium Foils as the Outer and Inner layer. The other 17 layers consists of recycled waddings, PE Foams, and other reflective foils.

Is SuperQuilt harmful?

SuperQuilt contains no harmful fibres and does not release any toxic gasses when cut or installed. When installing SuperQuilt, there is no requirement for any masks, PPE or gloves.

What thickness is SuperQuilt?

SuperQuilt is available in just one thickness, which is 40mm at a relaxed thickness and will compress down to 7mm.

Do SuperQuilt require airgaps?

To gain the best thermal performance, we recommend a minimum cavity/batten of 25mm both sides of the insulation. This is to allow the product to expand and reflect. If a cavity is removed, the performance would reduce by approx 20%.

Is SuperQuilt fireproof?

SuperQuilt has a Class E Euro Fire Classification Certificate. SuperQuilt is not fully fire-proof, however the true aluminium outer layers are flame proof, meaning if a naked flame touches the product, it will smoulder as opposed to spreading.

What’s the difference between SuperQuilt and SuperFoil?

SuperQuilt is a premium product with true aluminium foils as the outer layers, compared to SuperFoil’s range which has metalized foils which provides a lower Fire Classification Grade (Fail) SuperQuilt is also fully certified, and UK manufactured compared to SuperFoil.
