Under Rafter Insulation Kit

Name: Under Rafter Insulation Kit
Brand: MultiFoils Insulation
Price: 172.54 GBP
Availability: InStock

Total: £172.54 Ex. VAT Total: £207.05 Inc. VAT

Size

Quantity:

Featured How-To Video

Under Rafter Insulation Kit

Total: £172.54 Ex. VAT Total: £207.05 Inc. VAT

Size

Quantity:

Featured How-To Video

Key Features

25% of Energy Escapes when left uninsulated / poorly insulated
Reduces your Energy Bills
Really Easy Install – No Professionals Required
No Harmful Fibres – No Requirement for PPE
Significant Return on Your Insulation Investment
Prevents Energy Escaping Your Home
You can install one or two layers
Lasts the Lifetime of the Build
Compresses to 6mm / Only 15mm Thick
Equivalent to 100mm of Fibre Glass
This equates to around 50mm of PIR - Rigid Board Insulation
Free Next Working Day Delivery Nationwide, on all orders before 2pm.

Description

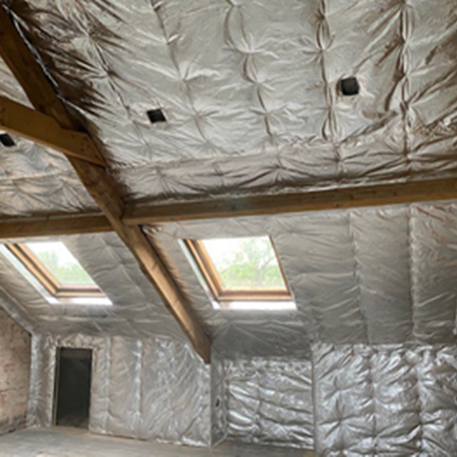

Fully Insulate Under Rafter

Did you know around 25% of heat can dissipate through your roof? By investing and installing this Insulation Kit you’ll be able to start saving immediately. Without the correct insulation you are consuming 25% more energy to get the same results as someone that has effective loft insulation.

Multifoil Insulation have created an Under Rafter Insulation Kit, which is easy to install, and highly effective. When installed Under Rafter it helps reduce energy bills by preventing heat loss through your roof.

What’s included in the Under Rafter Insulation Kit?

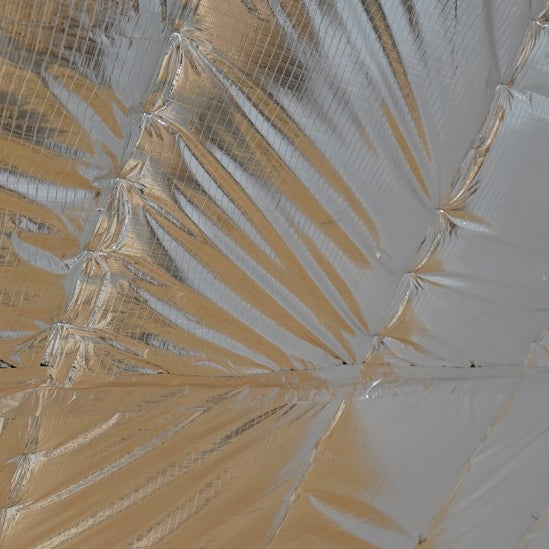

Multifoil Insulation – EcoQuilt Expert 1.5 x 10m

(15m²)EcoQuilt Expert is a High Performing Multifoil Insulation at 15mm Thick – Compressing to only 6mm when installed. It is equivalent to 100mm of Rockwool or 50mm of Rigid Board Insulation such as Kingspan. This Multifoil will therefore help you retain heat, in less Cost, Space and Installation Time.

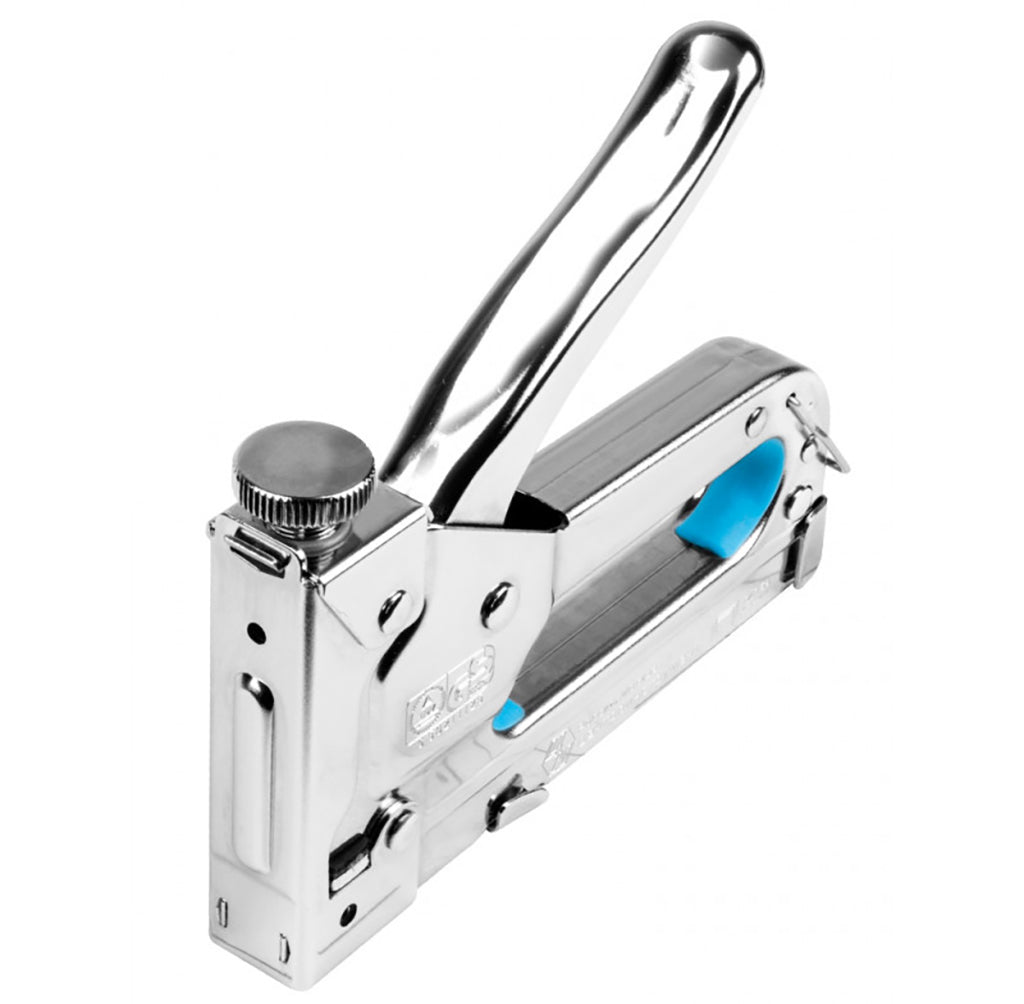

Staple Gun Kit

This comprises of a Heavy-Duty Staple Gun and 5,000 x 14mm Staples to Staple the EcoQuilt Expert into place.

10″ Multifoil Insulation Scissors

Stainless Steel Scissors, suitable for Cutting Multifoils

Check out our How To Guides to see how to install a double or single layer of EcoQuilt Expert under rafter.

Installation

This Insulation Kit is easy to install yourself, you do not need professional installers. the Insulation does not contain any harmful fibres so you don't need any protective clothing or PPE to install it. You simply staple the Multifoil Insulation to the underside of the rafters. Ensure that you overlap each layer by 50mm and leave the overlaps untapped.

You also have the option to install battens and plasterboard if required.

Free Next Working Day Delivery

To anywhere in the UK Mainland, on all orders placed before 2pm.

If you require any further assistance at all, you can get in Contact Us. You can send us a Call back request

You can order online or via phone on 0114 323 0012

Although this application is the most popular, if you would prefer to Insulate your Loft Floor – Click HERE.

How to Videos

How to Insulate your Loft (Under Rafter Detail)

How to Install a Single Layer of EcoQuilt Expert Under Rafter

How to Install a Double Layer of EcoQuilt Expert Under Rafter

How To Guides

How to Insulate Under Rafter

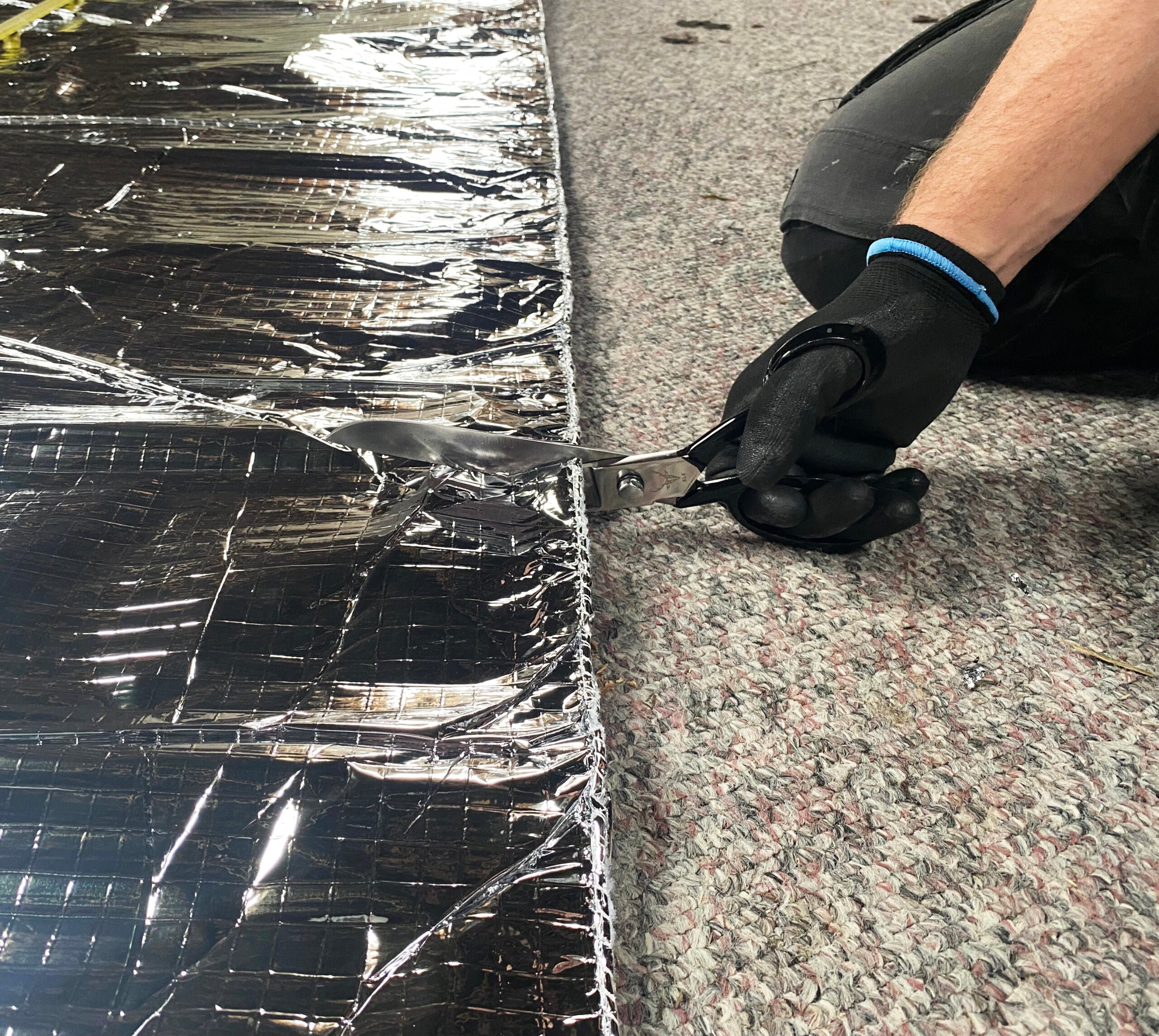

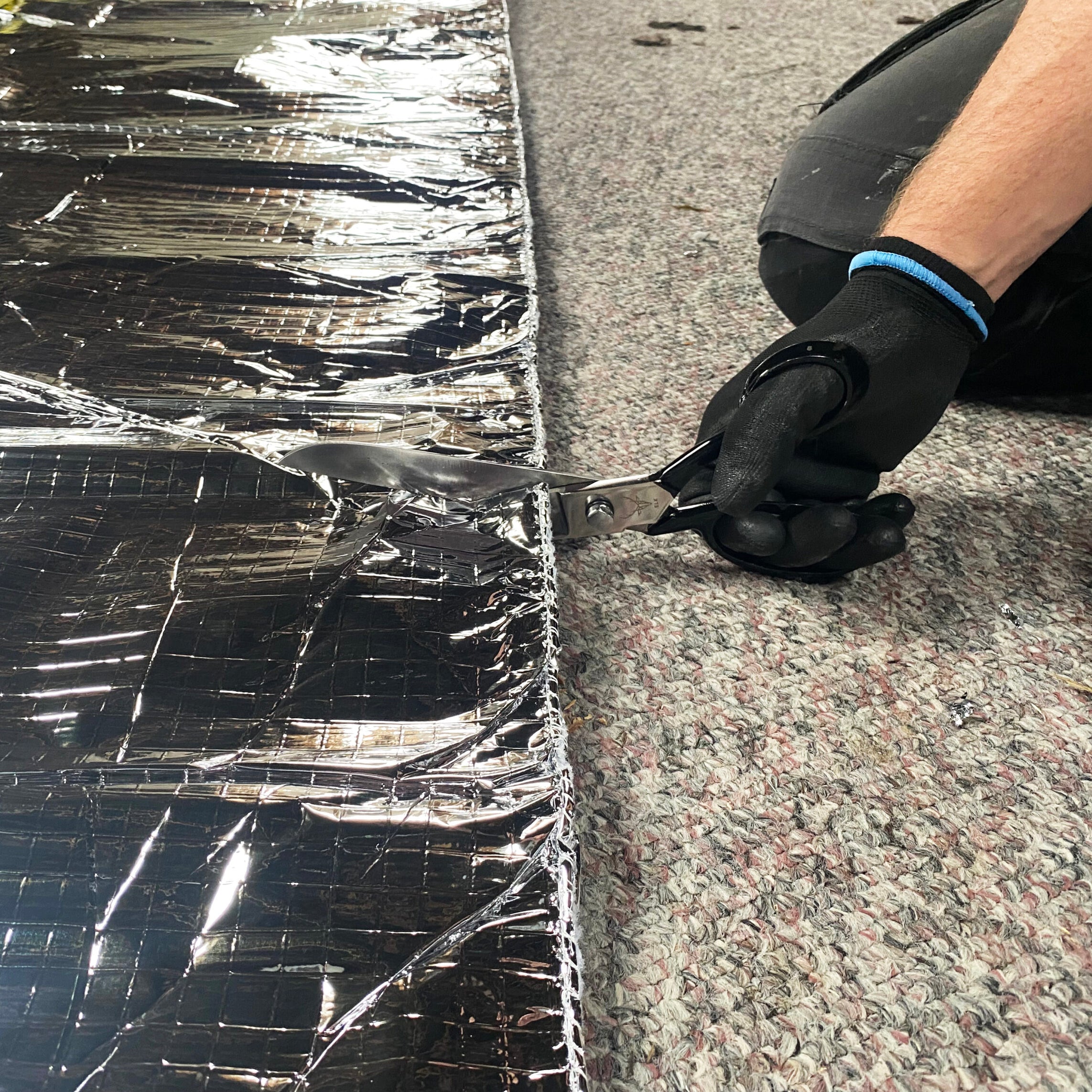

Cut the Material Required

Measure the amount of material required for your first strip and cut. It is most common for customers to insulate horizontally, but the choice is yours.

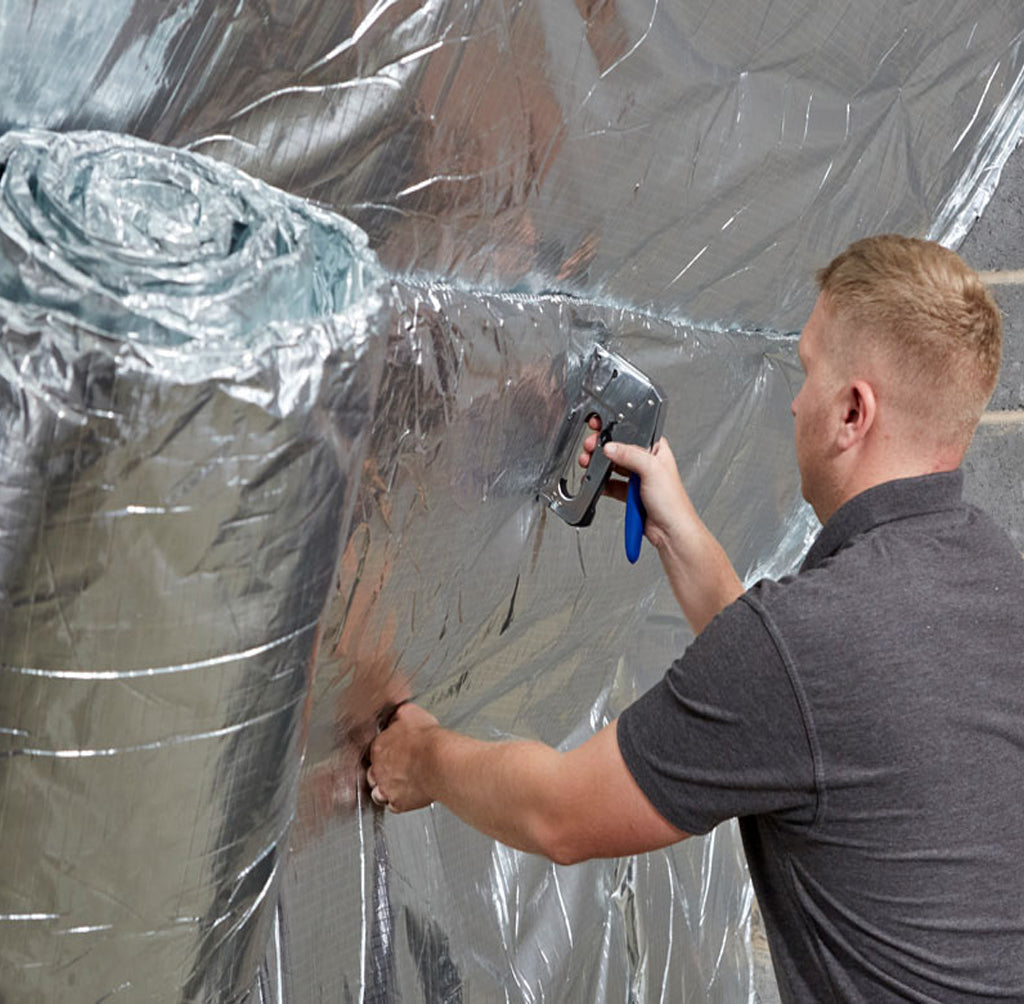

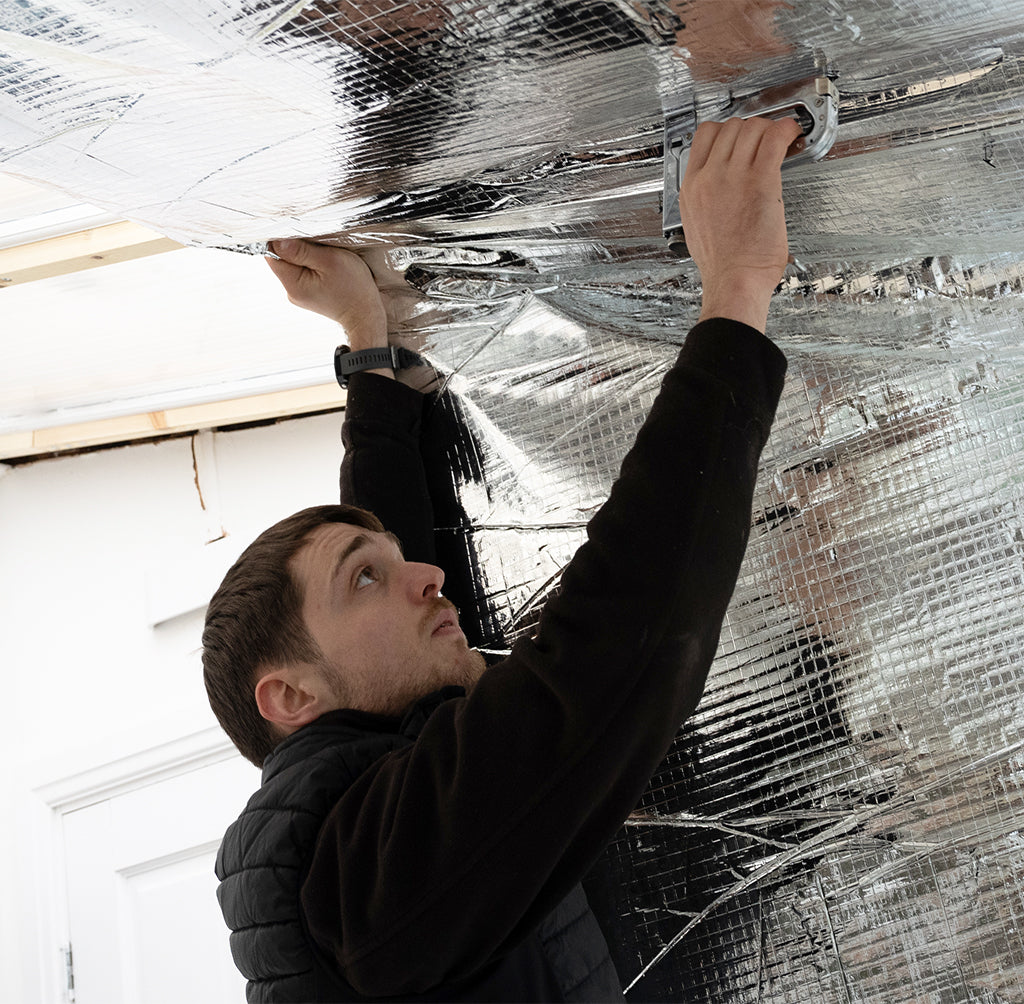

Staple the Multifoil in to Place

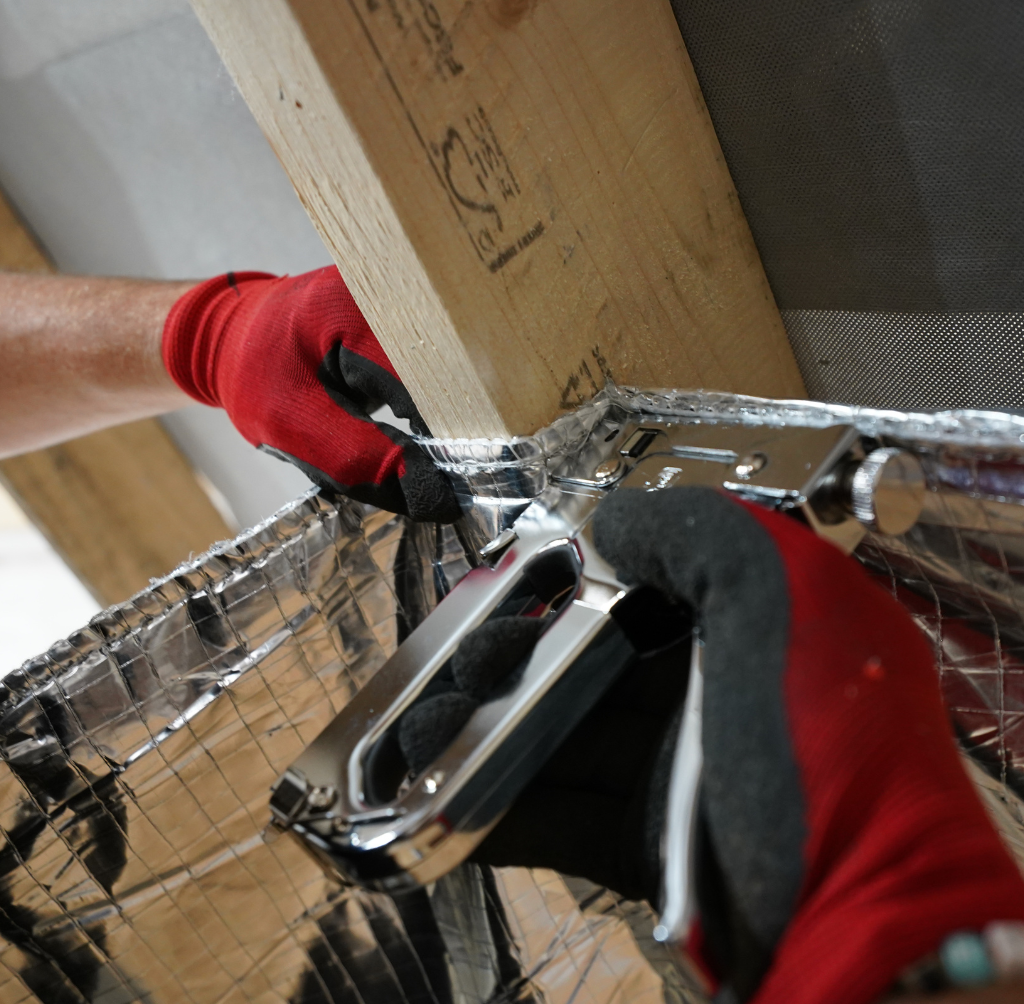

Staple the Multifoil to the underside of the Roof Rafters. We advise stapling every 300mm to ensure that the material is held securely in to place. Pull the material nice and straight where possible, to keep it neat and also to make the cutting process easier for you too.
Install your Second Layer...

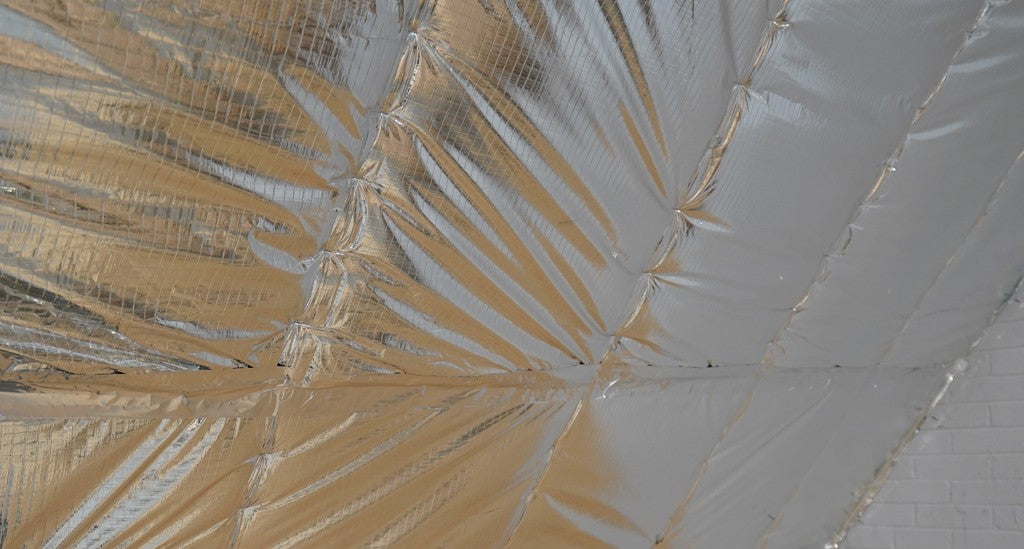

When installing your second layer, overlap the material on to the former layer by 50mm. Continue insulating until you have full coverage, following the above instructions.
Finish as you please!

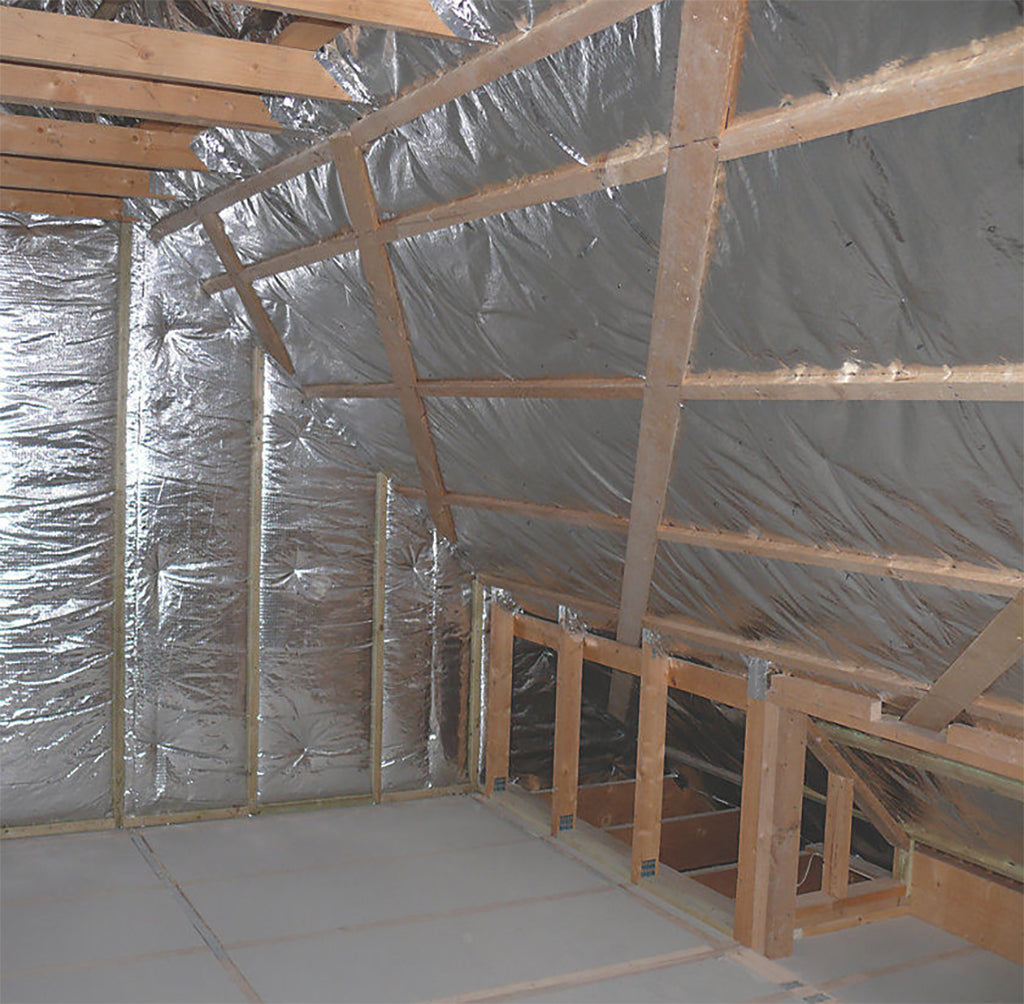

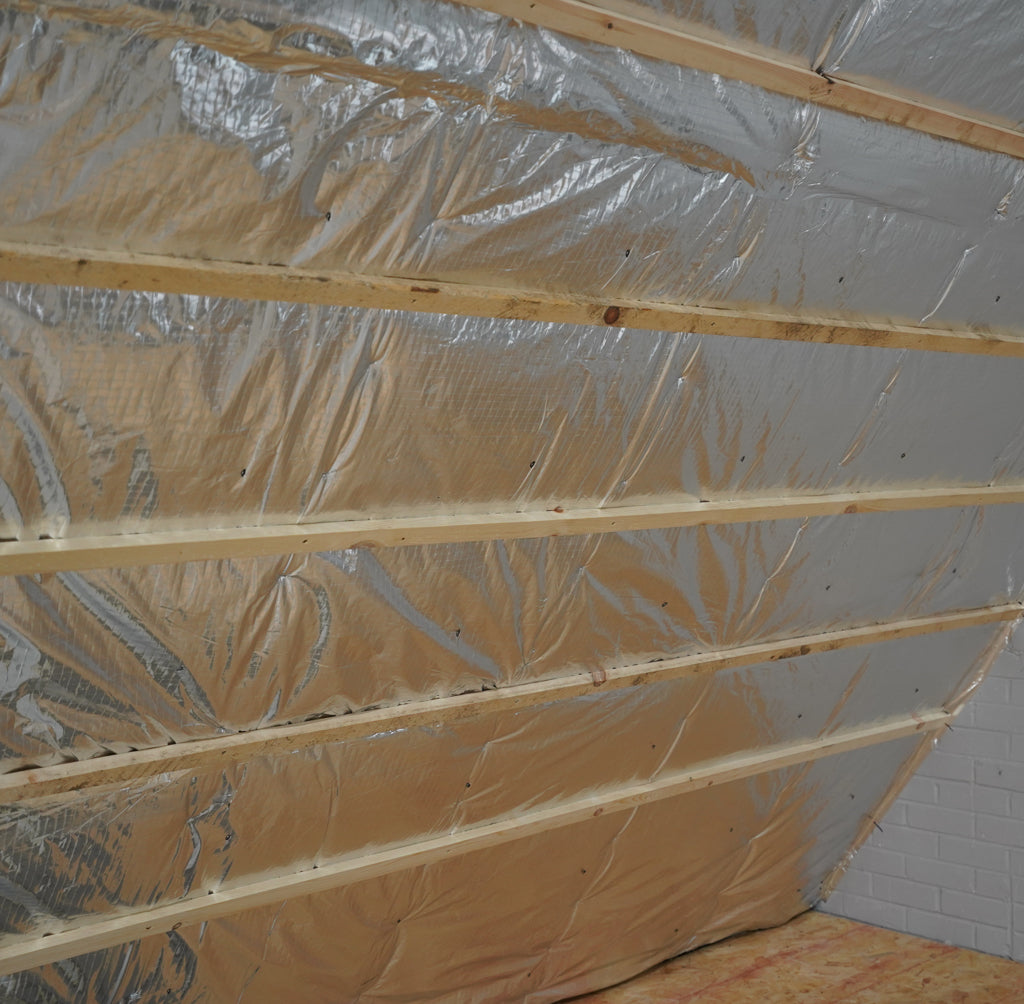

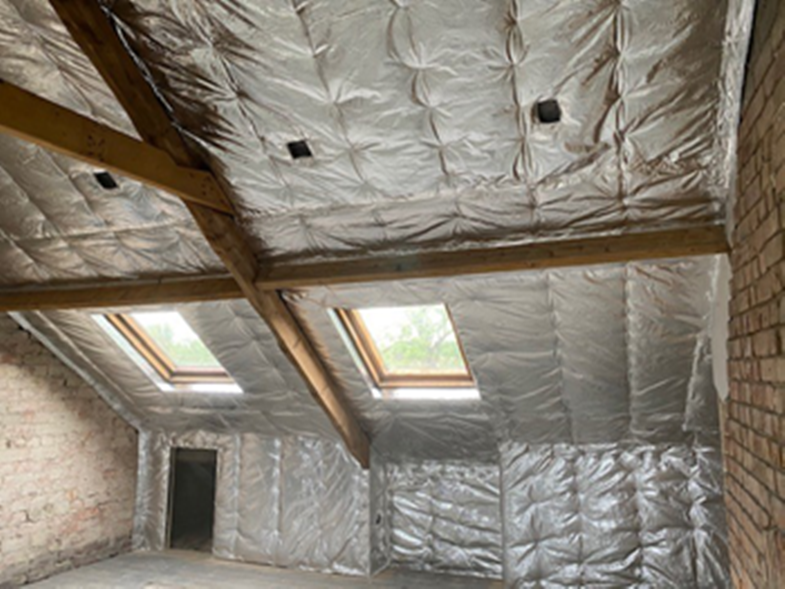

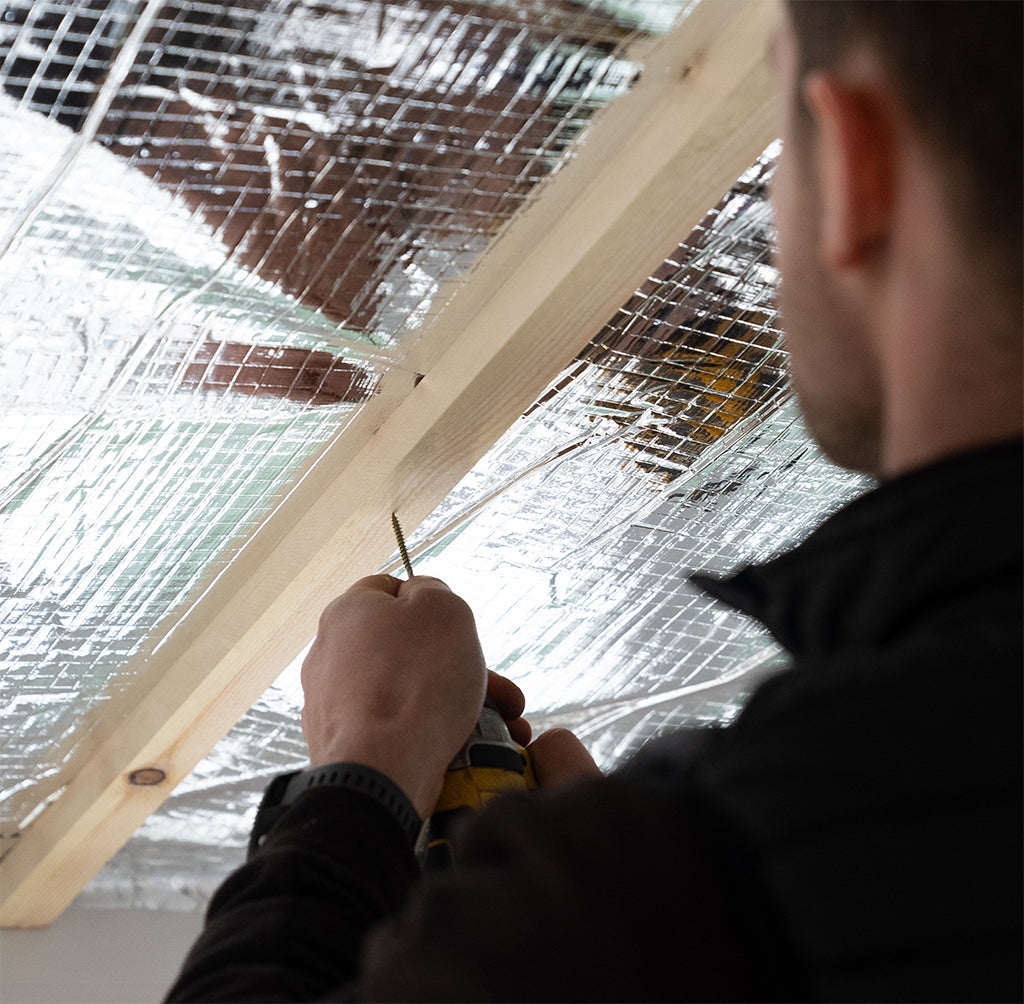

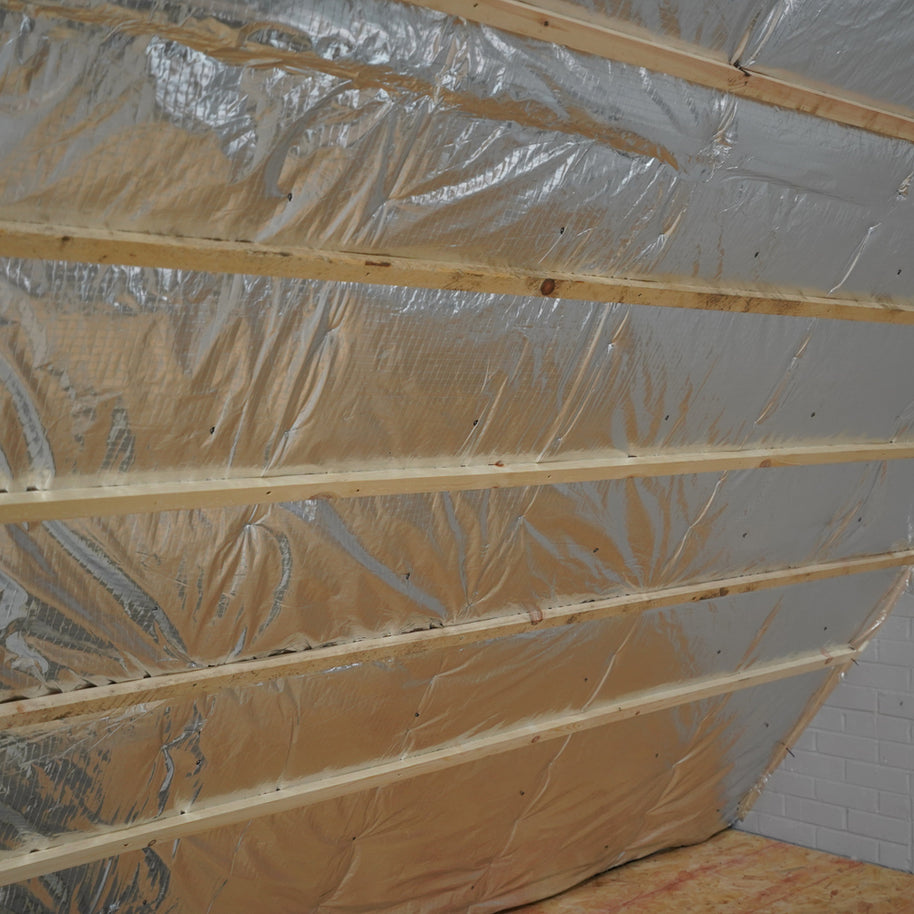

You may wish to leave the insulation exposed - which is fine. However, it is quite common for customers to nail / screw battens into place before boarding - if they are wanting to create a usable room. This is not required but is popular option.
If you would like to double the performance, you can!

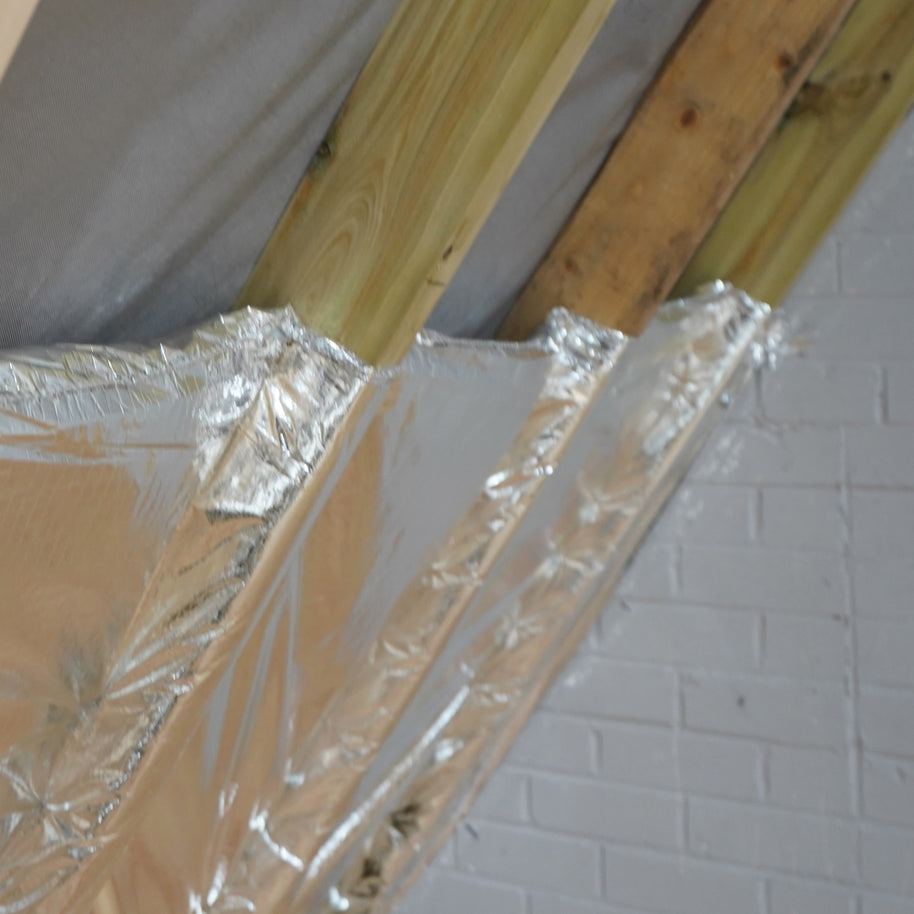

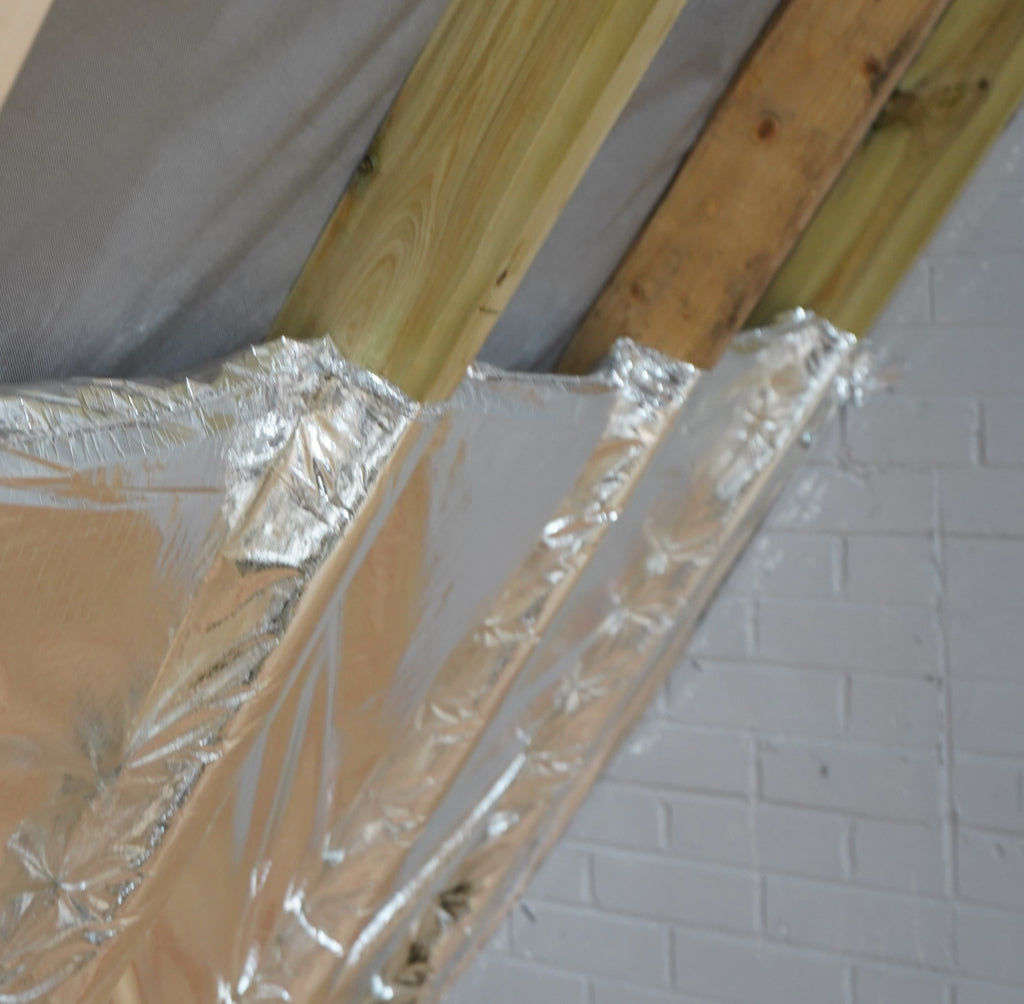

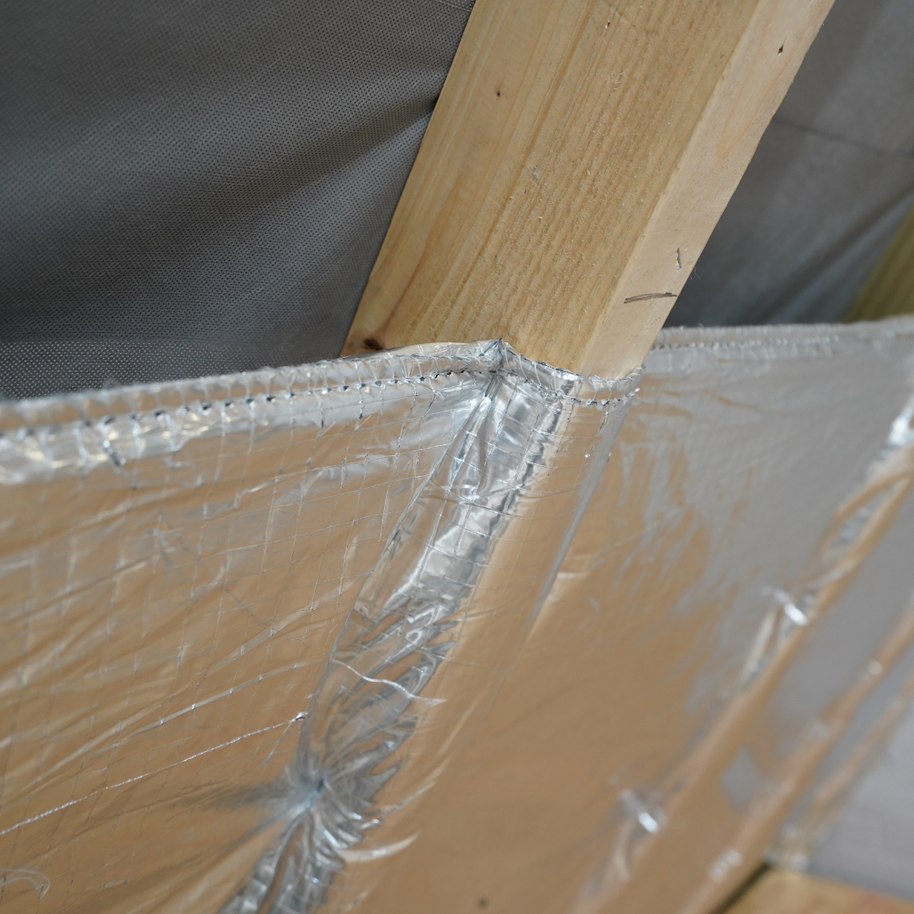

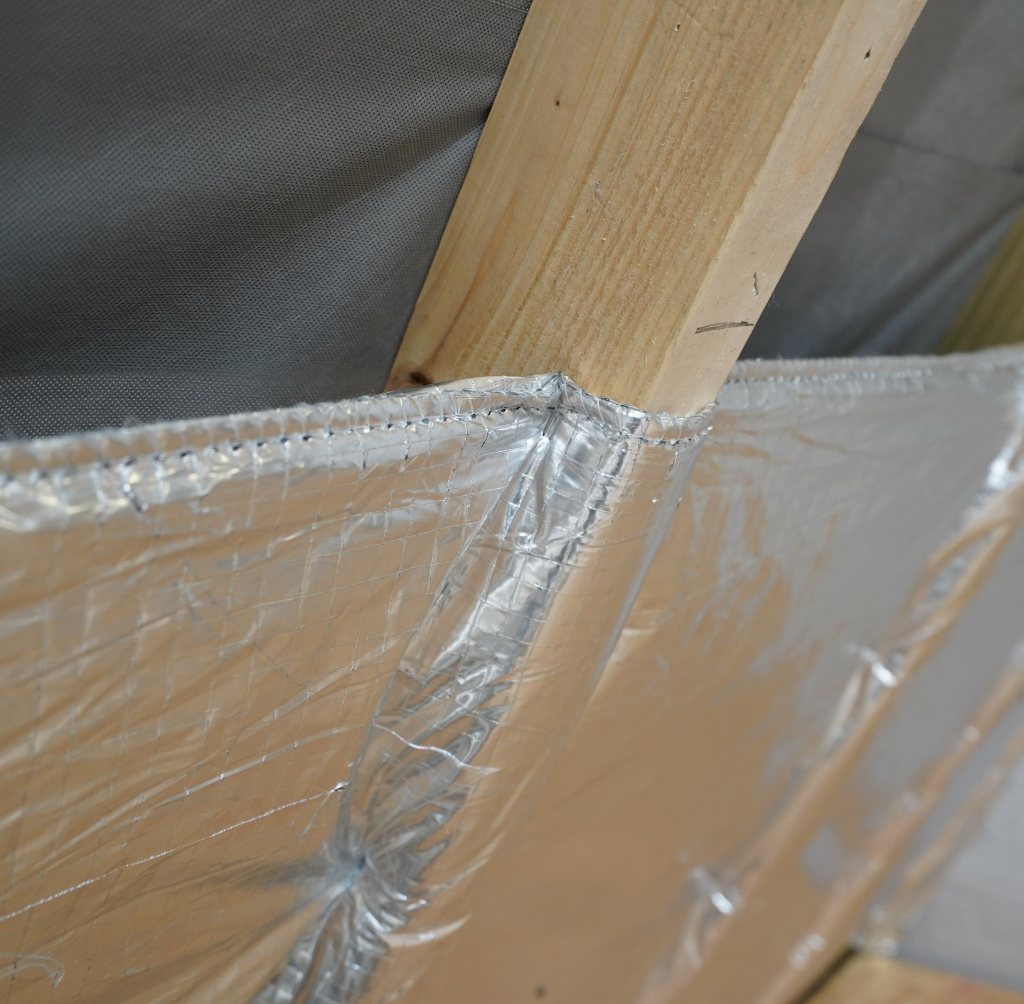

You can double the performance by installing two layers. To save on space, you recess the first layer to the side of the roof rafter. This way you still have an air cavity behind the product, but you also have an air cavity between the first and the second layer too.
Staple next Layers

Continue installing your first layer, until you have full coverage.

Specification

Length	10m
Width	1.5m
Thickness	15mm (5mm Compressed)
Roll Coverage	15m²
Layers	6
Weight	5.5KG
Core R-value	0.93m²K/W
Roof R-value	1.83m²K/W
Wall R-value	2.27m²K/W
Floor R-value	up to 5.56m²K/W
Foil Emissivity	0.05
Water Vapour Resistance	600MNs/g

Q&A's

Can I double up on the insulation?

Yes, you can do two layers of the EcoQuilt Expert Insulation. We recommend using a 25mm wooden batten over the first layer of insulation and attaching the second layer to the wooden battens. Or if the rafters of your loft are long enough you can recess the first layer of insulation into the rafters and then the second layer can sit across the rafters.

What should I use to cut the insulation?

In this kit, we provide a pair of 10” multifoil insulation scissors which are perfect for the job.

Do I need to overlap the insulation?

Yes, you do need to overlap the insulation otherwise you won’t get the best thermal performance. We don’t recommend taping and sealing the insulation in this application so overlapping the insulation will stop any draughts from getting in and warm air from escaping.

Will the foil insulation cause any problems with damp?

No, actually this will help prevent damp and mould and it’ll help reduce the risk of condensation.

Do I need any specific PPE to complete this job?

No, you don’t need any protective clothing, masks, or safety goggles as there are no harmful fibres in the insulation.

Can I board over this insulation?

Yes, you can board over this insulation by adding wooden battens over the top of the insulation and attaching what you’d like to board over with to the wooden battens.
