EcoPro Shed Insulation Kit
EcoPro Shed Insulation Kit
EcoPro Shed Insulation Kit
EcoPro Shed Insulation Kit
EcoPro Shed Insulation Kit
h1

EcoPro Shed Insulation Kit

Total: £142.85 Ex. VAT Total: £171.42 Inc. VAT

EcoPro Shed Insulation Kit

EcoPro Shed Insulation Kit
EcoPro Shed Insulation Kit
EcoPro Shed Insulation Kit
EcoPro Shed Insulation Kit
EcoPro Shed Insulation Kit
h1
Total: £142.85 Ex. VAT Total: £171.42 Inc. VAT

Key Features

  • Highly Reflective Multifoil Insulation
  • Includes ThermaSeal Foil Tape, Staple Gun, Staples, and a Cutting Knife
  • Available in Various Sizes
  • Each roll is 1.5m x 10m
  • Thin, Flexible, and Easy to Install
  • High-Performing Vapour Control Layer
  • Equivalent to around 100mm of Glasswool
  • Suitable for all types of Garden Buildings
  • Compresses to 6mm Thick
  • Reflects Excess Heat Away during Summer
  • Reflects Cold away during the Winter
  • UK Manufactured

Featured Video

Description

Superior Insulation for Your Shed

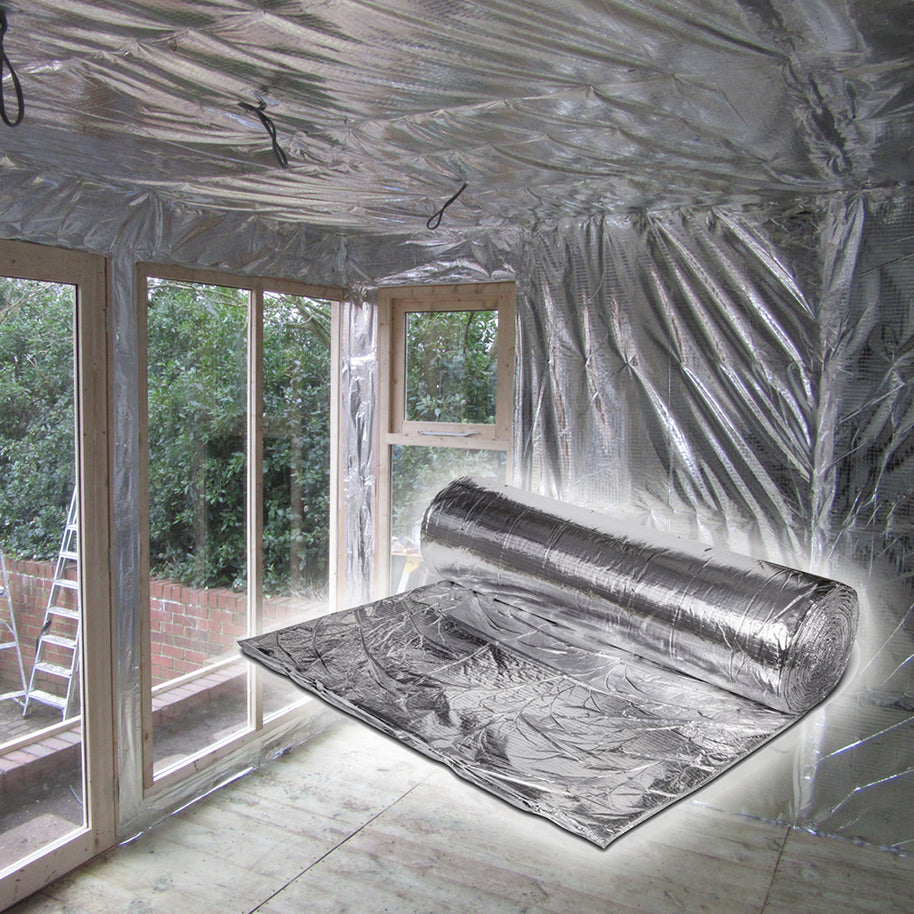

Our EcoPro Shed Insulation Kit is ideal for insulating Garden Offices, Games Rooms, Workshops, and any Timber Building. EcoQuilt Expert is a high-performing Multifoil insulation for use all year round.

EcoPro is designed to reflect cold away during the winter months while reflecting warm air back into the building. During the Summer months, EcoPro reflects excess heat away, keeping your Timber Building at a comfortable temperature all year round.

The EcoPro Shed Insulation is 15mm thick in its open state and only 6mm thick when compressed between battens. A 25mm air gap on either side of the product will help the Multifoil Insulation reflect and stop any condensation when fully taped and sealed.

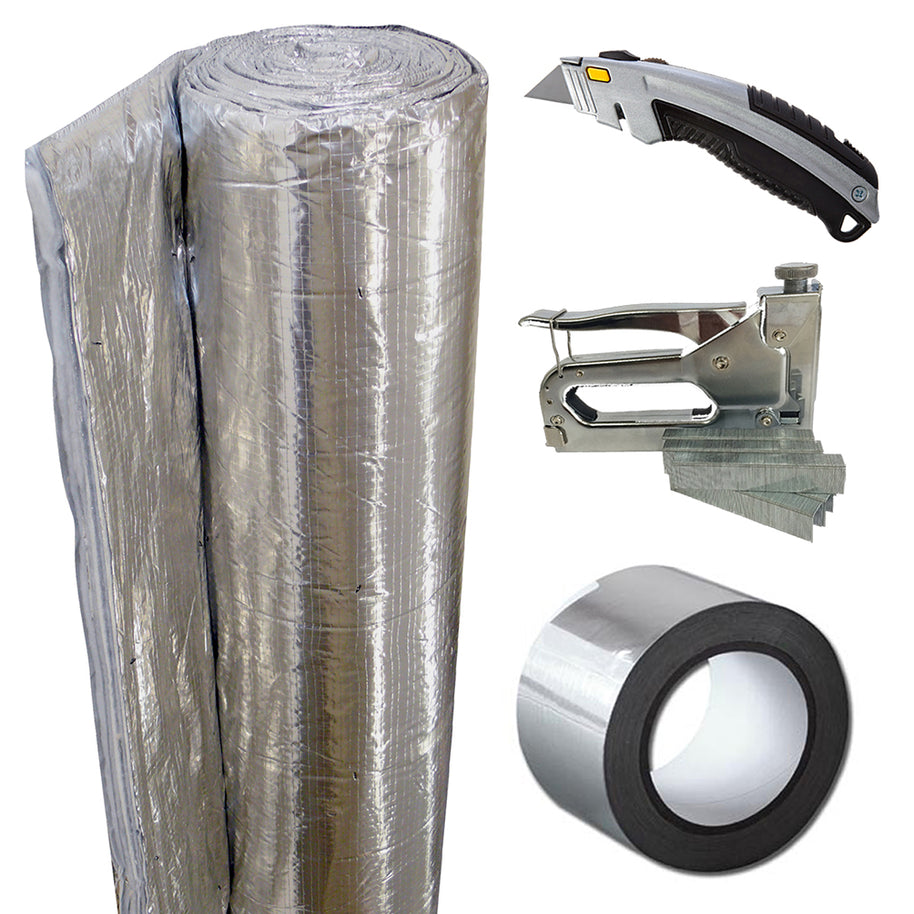

The EcoPro Shed Insulation Kit Includes

  • 1.5m x 10m Roll (15m²) of EcoPro Insulation
  • Thermaseal Foil Joining Tape 75mm x 50m
  • Heavy Duty Staple Gun Kit
  • A Cutting Knife

Everything you need to install your High Performing Multifoil Insulation.

All orders of EcoPro Shed Insulation Kits are delivered Carriage Free to the UK Mainland. Order before 2pm to receive your goods the following working day!

Watch our How-To-Video below to see how EcoPro is installed in less space, time and cost than any other method.

Remember if you have any further questions, Request a Call Me Back and one of our team members will call you within an Hour!

If your Timber Building doesn’t require such a High Performing Insulation Material please see our EcoTec Shed Insulation Kit Here!

How-To Videos

How to Insulate your Timber Building and Shed Using EcoQuilt Expert Reflective multifoil insulation

How-To Guides
How To Insulate Your Timber Building Using an EcoPro Shed Insulation Kit

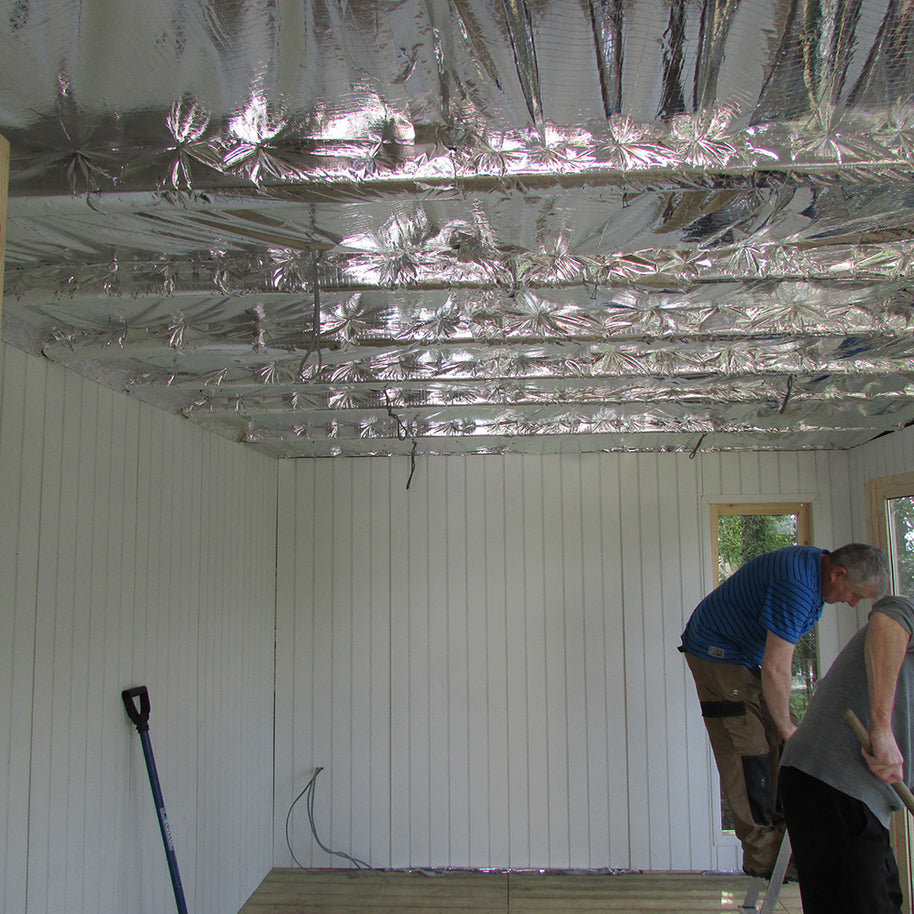

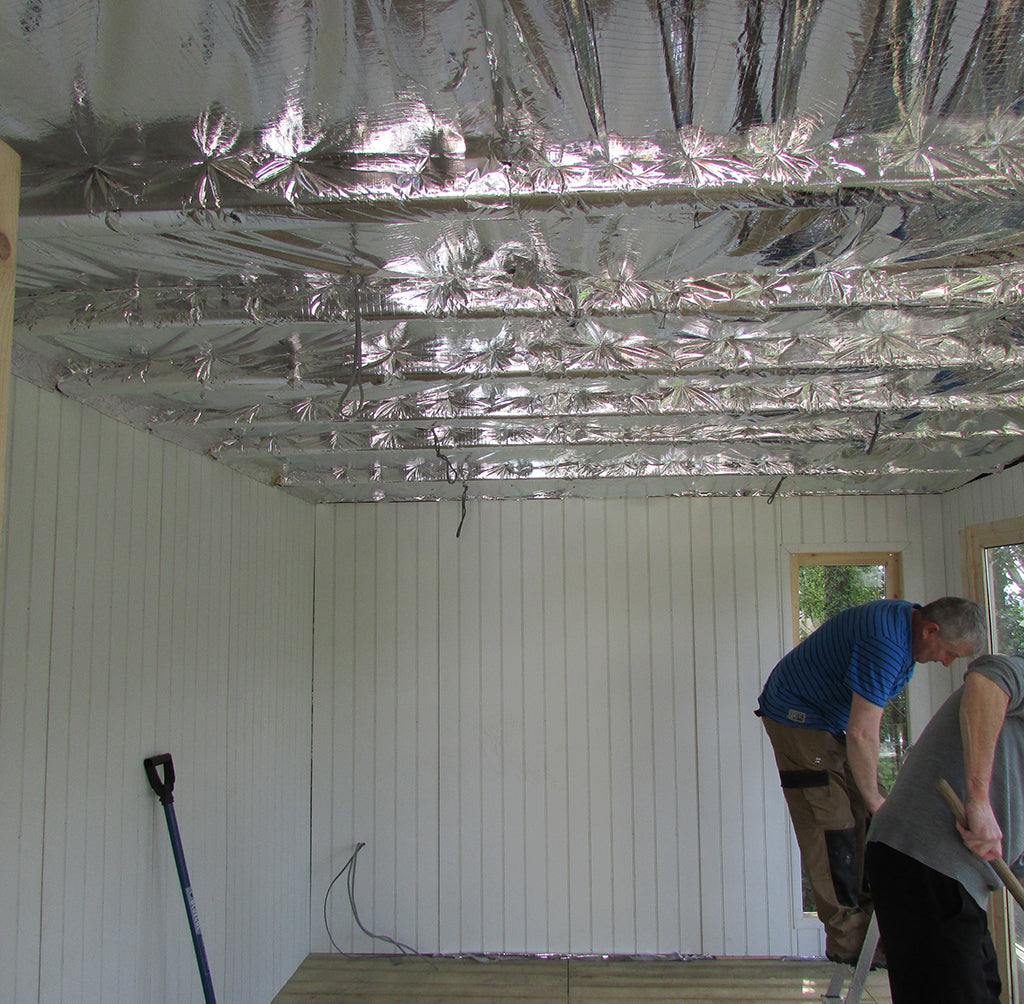

1. Staple the EcoQuilt Expert under the roof rafters

Start by stapling EcoQuilt Expert to the roof rafters using the Heavy Duty Staple Gun Kit. Ensure that the material is pulled taut across onto the next rafter. Then, Staple down the second rafter at a maximum of 2 inches apart.

2. Secure & Cut off any excess

Once you have secured the first section, cut any excess material off with the sharp blade provided in the EcoPro Insulation Kit.

3. Repeat the process

Install the next section in the exact same way, stapling to the joists and cutting off any excess. Remember to ensure a 50mm overlap of material.

4. Seal with ThermaSeal Foil Joining Tape

Once you’ve stapled your EcoQuilt, it’s now time to seal all of the joints and edges with ThermaSeal Foil Joining Tape. This is what creates the Vapour Control barrier.

5. Fixing your roof counter battens

Now you can fix the 19mm battens to secure your EcoQuilt, using screws with a minimum length of 35mm. Fix the remaining battens in the exact same way. Now, you are ready to install the surface finish of your choice.

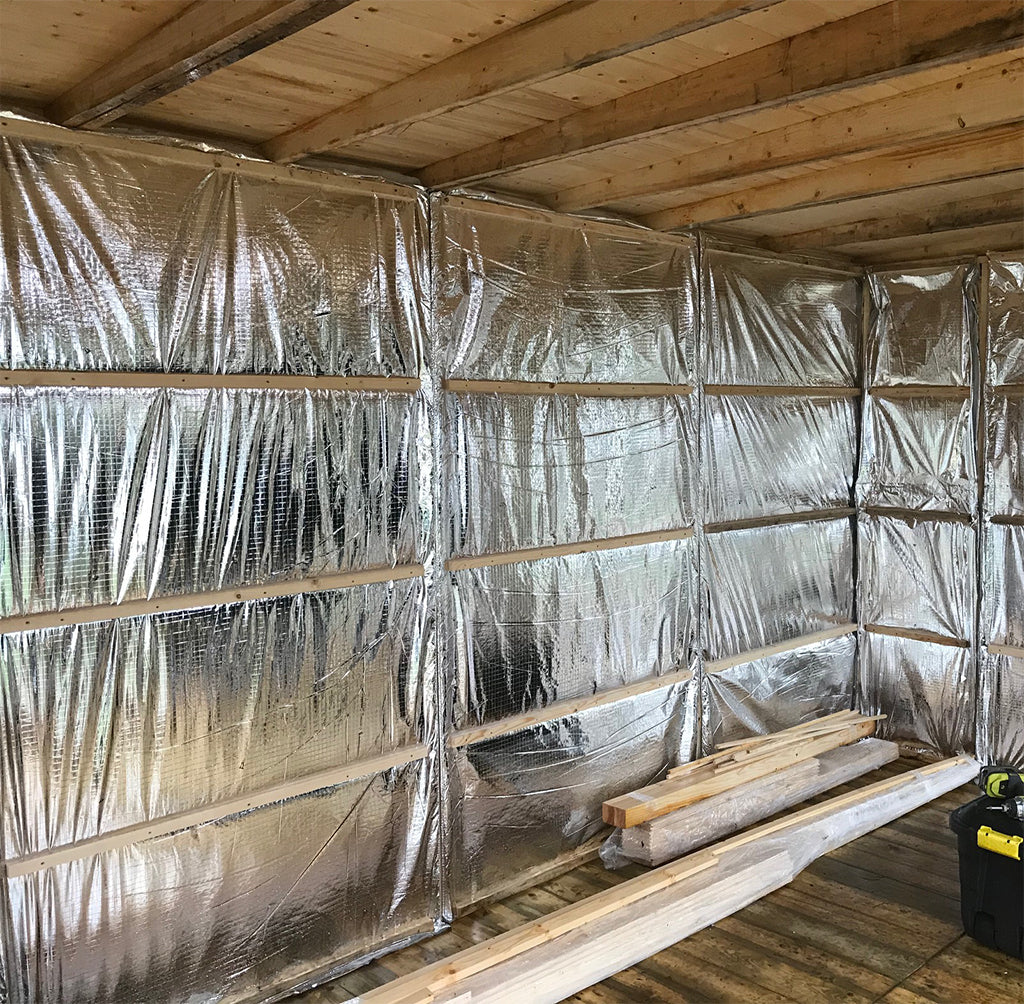

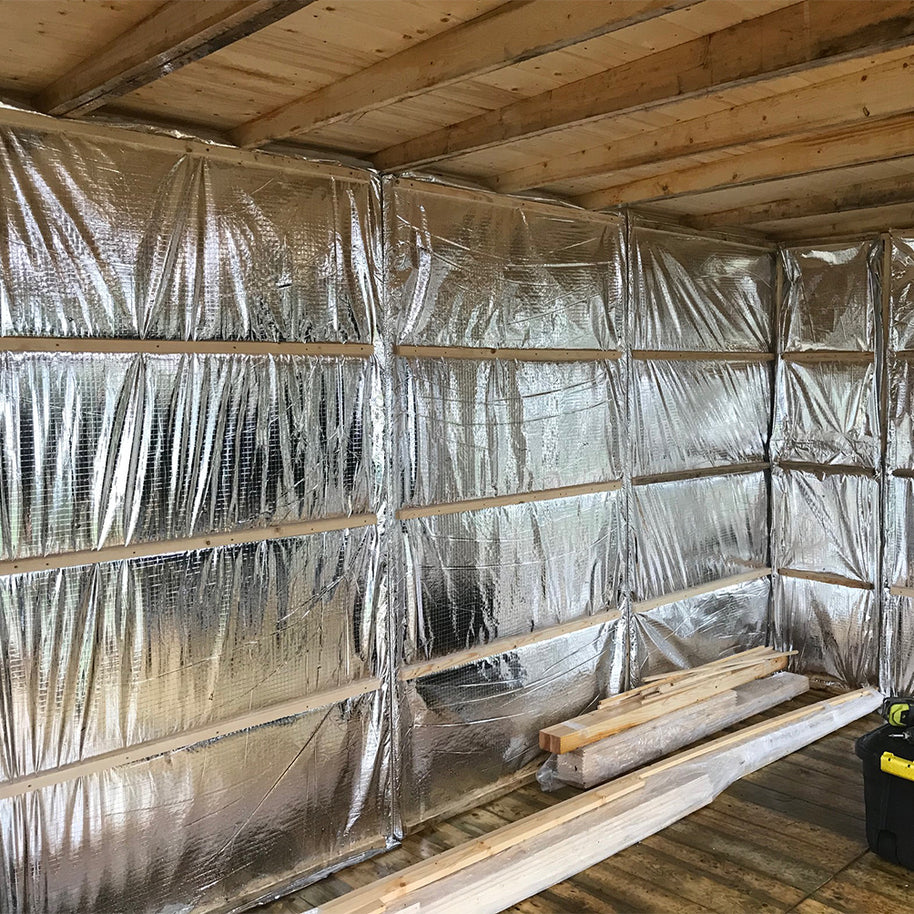

6. It’s time to insulate the summerhouse walls

For buildings with existing studwork, hold your insulation into place and simply recess the EcoQuilt halfway back by stapling it onto the side of the stud. Ensure a 19mm air gap either side of the insulation. Then continue by pulling the material taut before securing onto the next timber stud. Ensure EcoQuilt is stapled at minimum intervals of 300mm, using the 14mm staples provided.

7. Attaching battens (if needed)

If your space does not have timber uprights, you can fit 19mm battens onto the walls using screws.

8. Seal the with ThermaSeal Foil Joining Tape

Now that all of your EcoQuilt is stapled into position, it’s time to seal all overlapping joints and around the perimeter with ThermaSeal Foil Joining Tape to ensure an airtight seal.

Specification
Length 10m
Width 1.5m
Thickness 15mm (5mm Compressed)
Roll Coverage 15m²
Layers 6
Weight 5.5KG
Core R-value 0.93m²K/W
Roof R-value 1.83m²K/W
Wall R-value 2.27m²K/W
Floor R-value up to 5.56m²K/W
Foil Emissivity 0.05
Water Vapour Resistance 600MNs/g
Datasheet(s)
How Much Insulation Do I Need to Insulate My Shed or Summerhouse?
Question and Answer
What’s the difference between the EcoPro and EcoTec Shed Insulation Kits?

Our EcoPro Shed Insulation Kit uses EcoQuilt as the insulation. EcoTec uses AirTec Double for the insulation. EcoQuilt does have a better thermal value than AirTec double however it does come at a higher price point.

What would you recommend using the EcoTec Shed Insulation Kit for?

If you’re simply using the space as a summerhouse, storage, shed, or storage building we’d recommend using the EcoTec Shed insulation kit as you don’t need the insulation to keep the space warm at all times it’ll help protect the contents from the elements.

Do I need to tape and seal the insulation?

Yes, we recommend taping and sealing over all joints and overlaps on the roof and walls. This will help the products to act as a high-performing vapor control layer. However, if you’re insulating the floor, you still need to tape and seal the perimeter but leave the overlaps un-taped, this will ensure any moisture will escape below.

Why do I need to overlap the insulation?

The insulation should be overlapped by 50mm because this will stop draughts from entering the space and warm air from escaping.

Do I need to leave an air gap?

Yes, the minimum air gap we recommend is 25mm on either side of the insulation however if a larger air gap is present this will only benefit the insulation. The air gap will help reflect any heat inside and any cool air outside.
