Achieve New Roof Insulation Regulations

Achieving new U-value targets has become increasingly difficult in the UK. New government part L documents recommend hitting a U-value on pitched and flat roofs of 0.15. Whilst this new U-value gives improved heat retention, achieving a U-value of 0.15 is likely to take up excessive space, cost too much money, or possibly both of these factors!

Multifoil-Insulation have created a complete system named TrioQuilt. TrioQuilt is a 3 part system, consisting of two fully accredited products, suitable for both pitched and flat roofs.

Below is a breakdown of what's included in our TrioQuilt 0.15 Roof Insulation System;

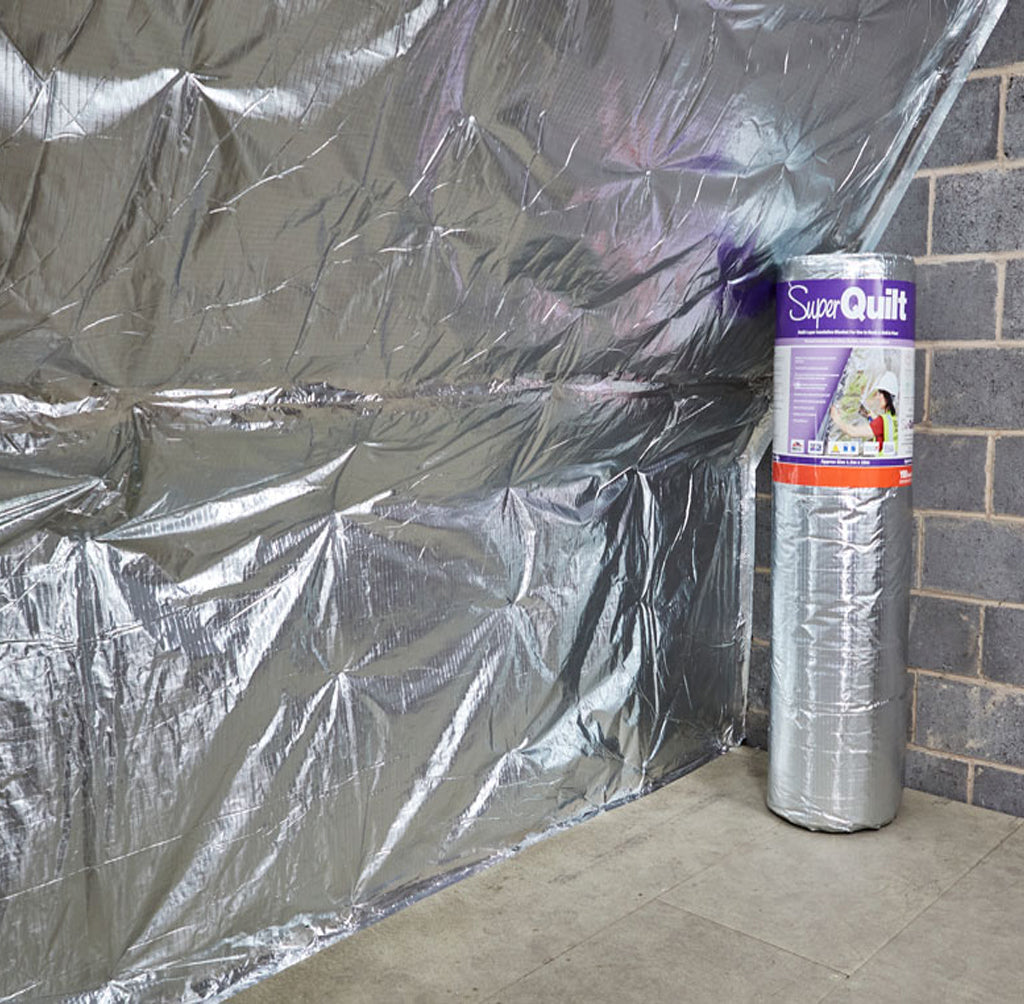

YBS SuperQuilt (Internal of Rafters) - 2 x Layers

Eco-Non Itch Wool (in-between rafters) - 1 x Layer

Using this system will achieve a U-value of 0.15. This is the most common u-value required for refurbishments and extensions projects in the UK, for pitched and flat roofs. (2022 onwards)

This is a proven system which will save tremendous costs compared to using Rigid PIR Insulation. In addition, labour time is significantly saved due to no requirement to cut insulation between rafters.

Main benefits of our TrioQuilt Solution

• SuperQuilt works as a high performance Vapour Control Layer
• Installation time saved - No cutting PIR Insulation boards (such as Kingspan or Celotex)
• 2 Layers of SuperQuilt internal preventing cold bridging
• No protective clothing or masks
• Incredible cost saving compared to insulated plasterboard
• Hits 0.15 U-value for Part L

What's included in our TrioQuilt 0.15 Roof Insulation System?

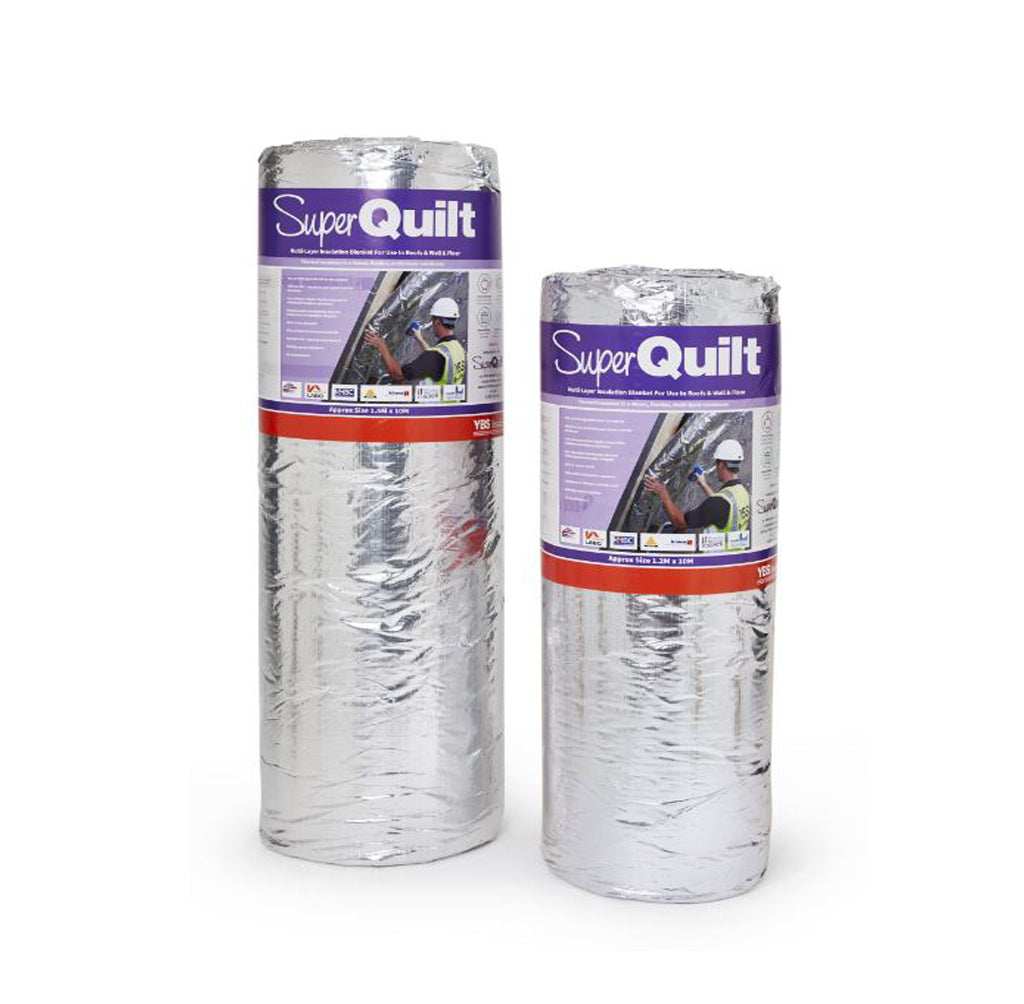

• 2 x Layers of YBS SuperQuilt (1.5m x 10m Rolls)

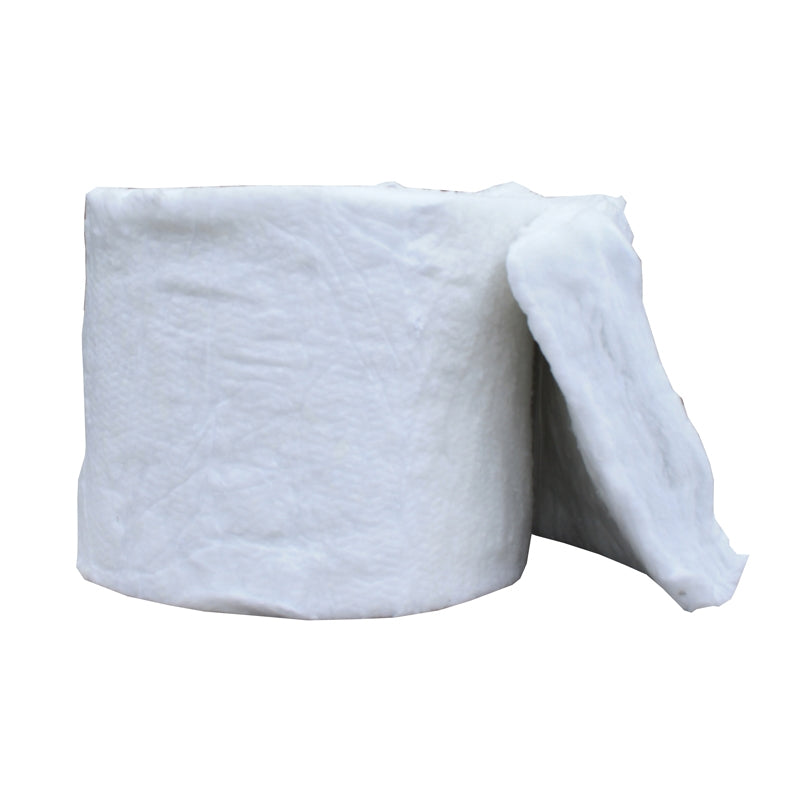

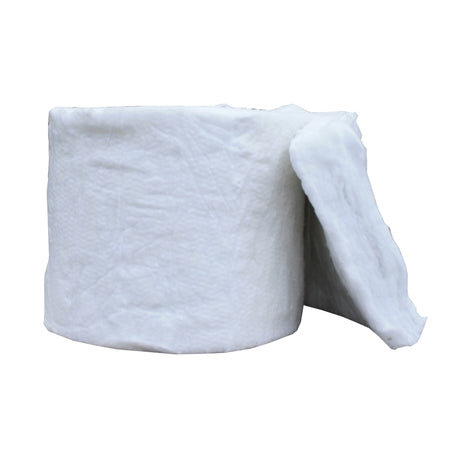

• 1 x Layer of 100mm EcoLoft Non Itch (9.12m2 per pack)
  • Available in two widths - 380mm or 570mm - 8m length
• Adequate Thermaseal Foil Joining Tape 75mm x 50m
• FREE Heavy Duty Staple Gun & 5K Staples - When ordering 30m2 Kit or greater
• Free Nationwide Delivery
• 1 - 2 Working Day Lead Time

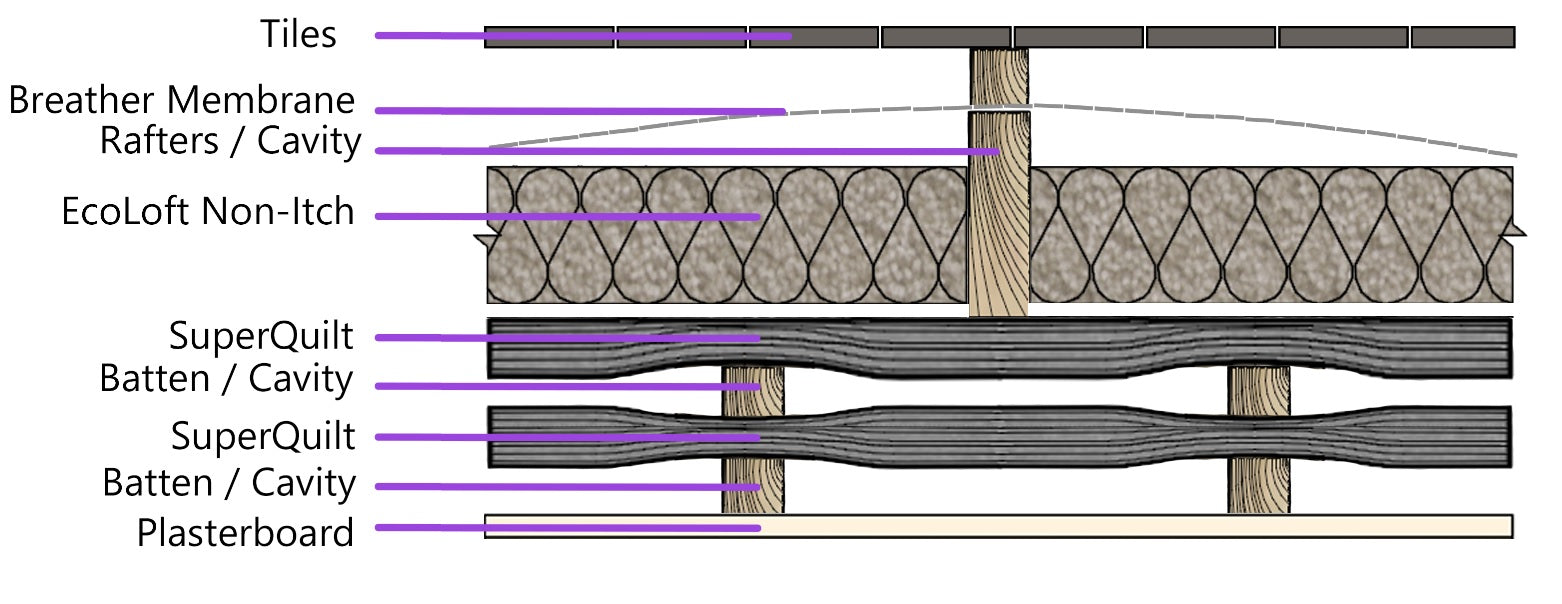

Recommended Installation

• Breather membrane, tile batten & slate/tiles fitted from the outside

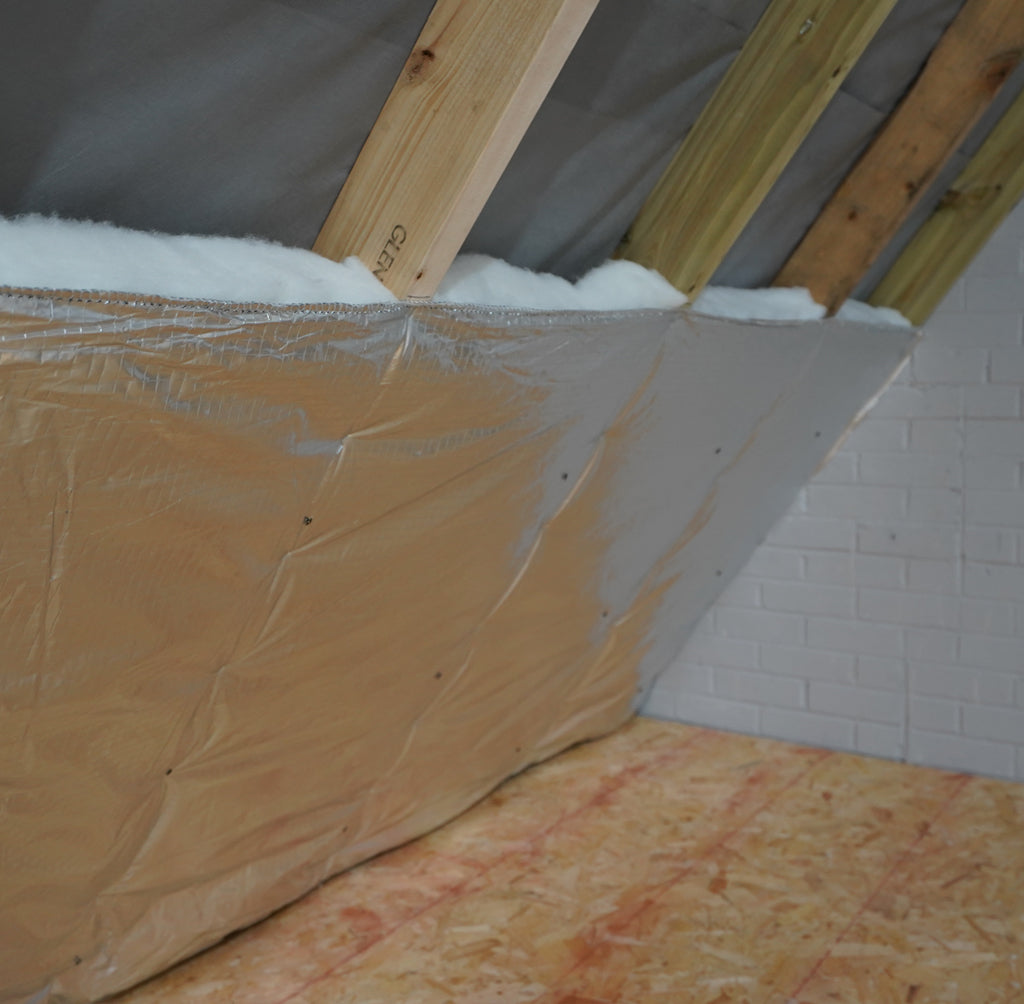

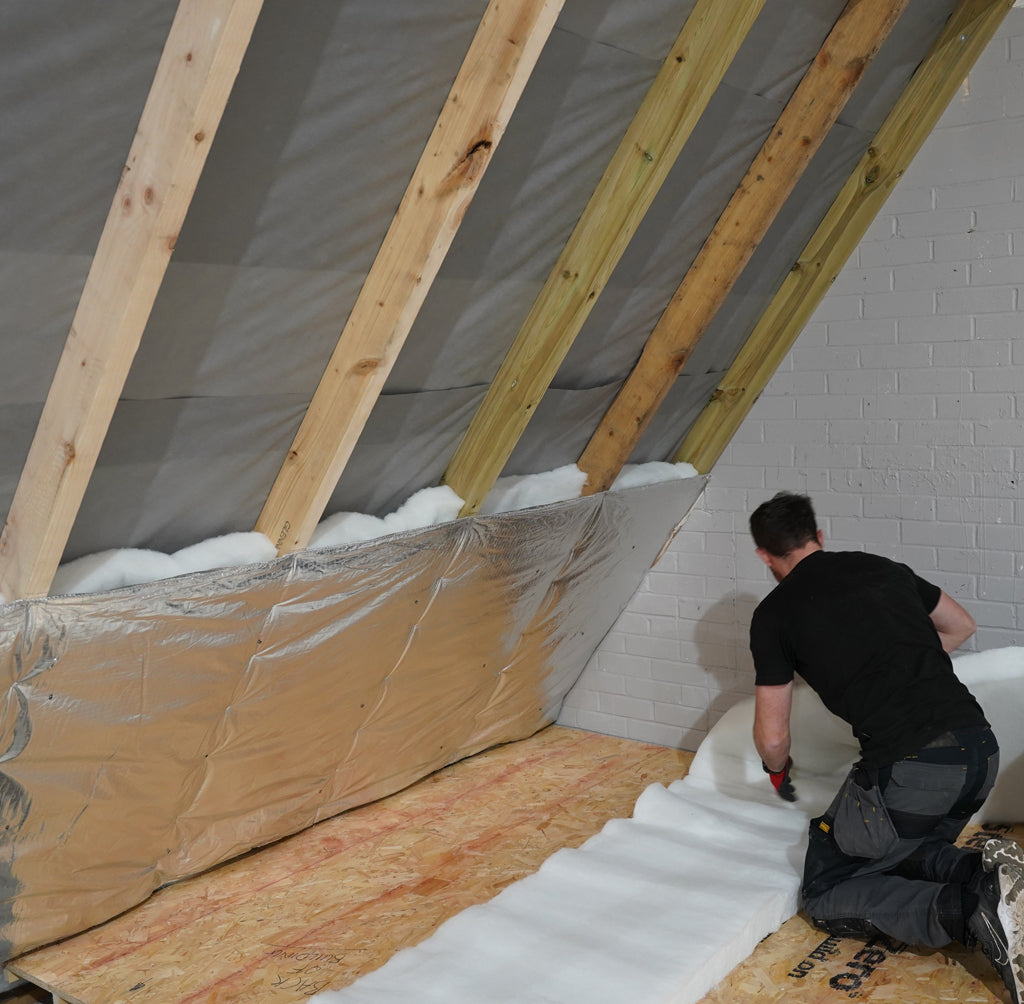

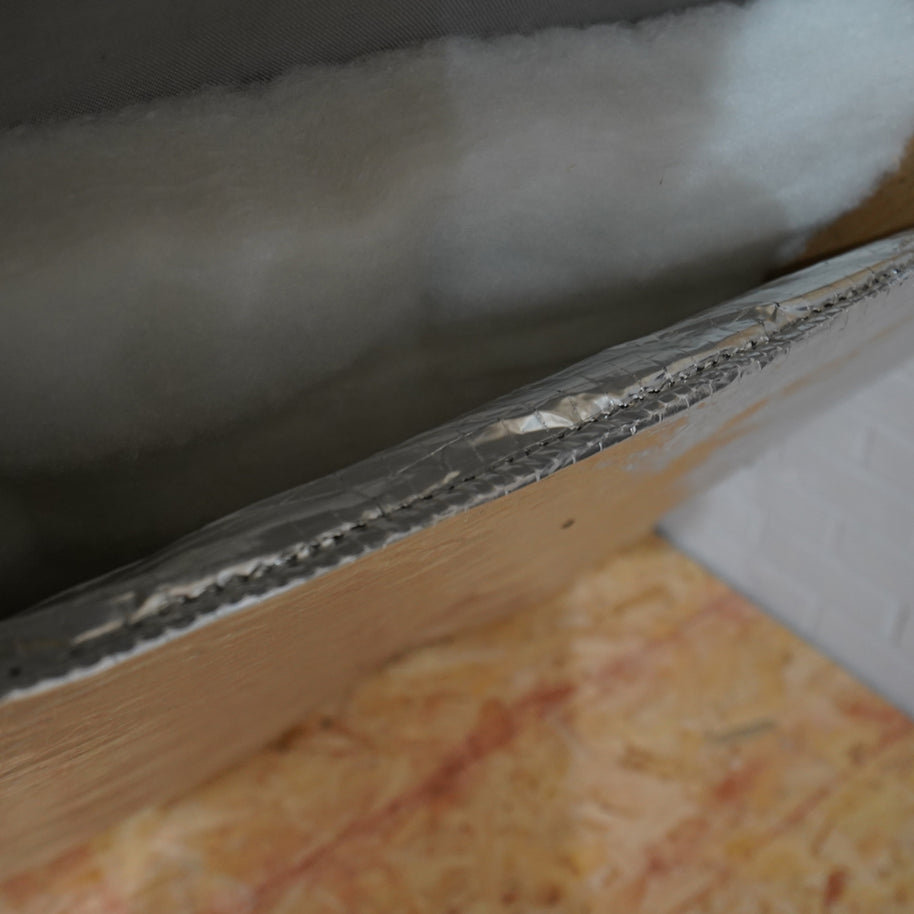

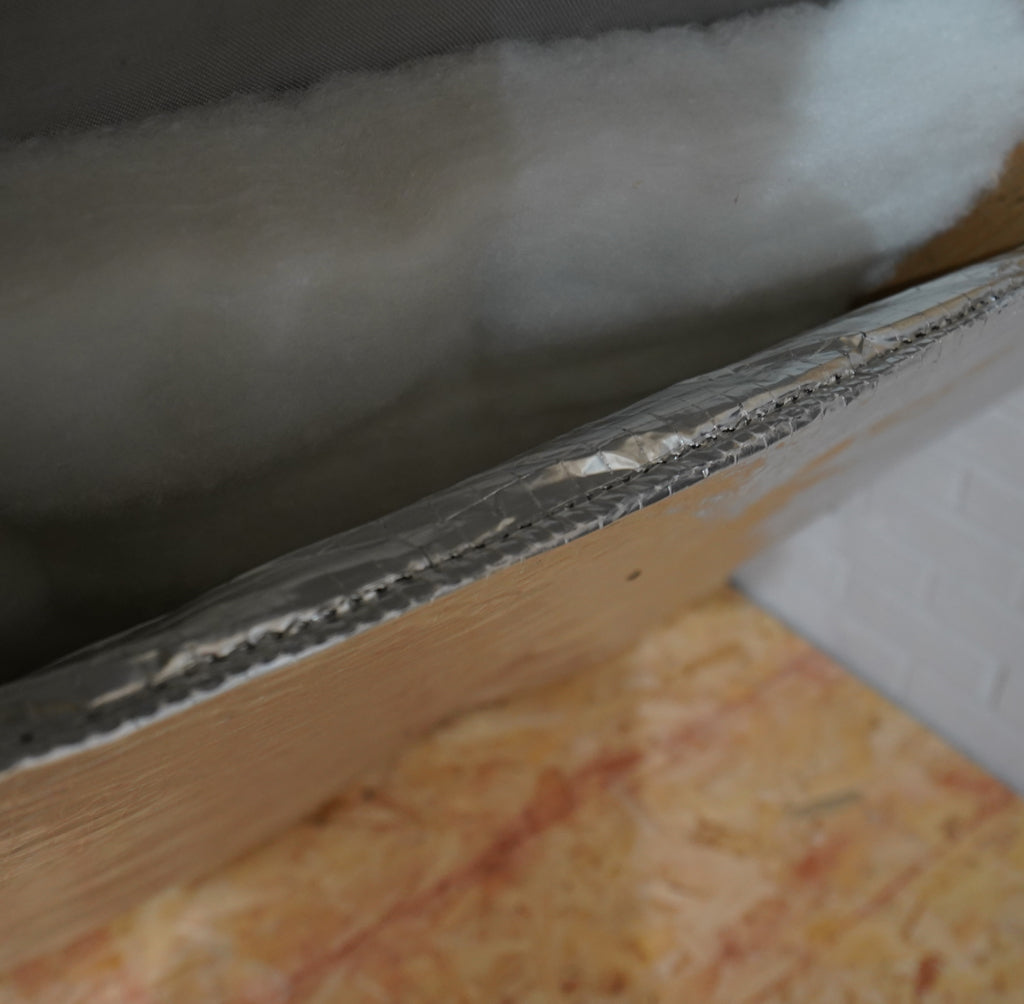

• From internal, fit 100mm EcoLoft Non Itch (centrally) in rafters

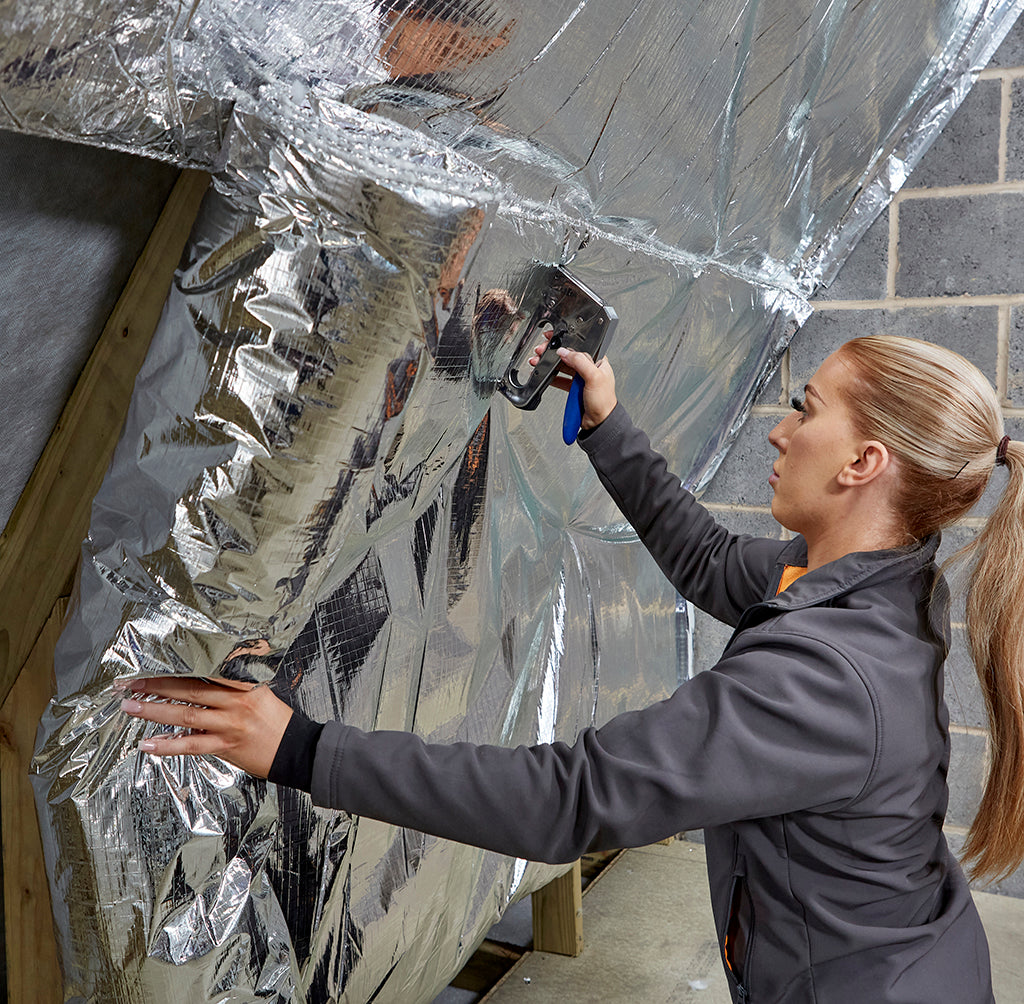

• Staple first layer of SuperQuilt taut under rafters
• Fix 25mm deep battens
• Staple second layer of SuperQuilt taut under battens
• Fix 25mm deep battens
• Finish with Standard Plasterboard

Note - the above installation is based on 150mm rafters or greater.
